Disabling When Not In Use

IMPORTANT: Double pump systems, such as the 1770NT 24 row planter, must have keyways (A) timed 90 degrees to each other when pump chains are reinstalled or machine damage will result.

A54239
A54239-UN-08APR04

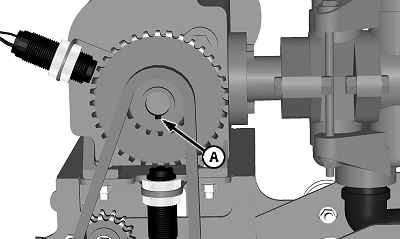

Front Pump

A54240
A54240-UN-08APR04

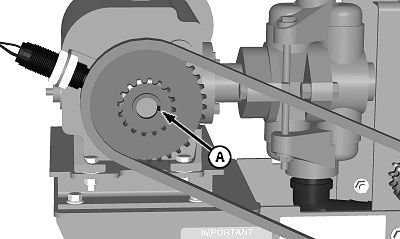

Rear Pump

A - Keyway

Remove drive chain from pump whenever fertilizer system is not being used.

OUO6074,0000C1A-19-20040408
