Screen Navigation

NOTE: Although information appears similar on competitive displays, the navigational steps can be different. Refer to the operator's manual for your display for specific instructions.

A59550
A59550-UN-26MAR07

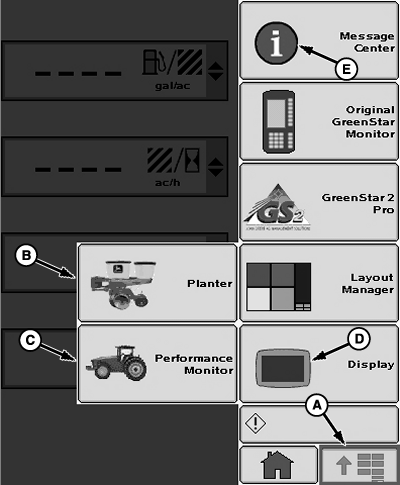

Menu Buttons

A - Primary Menu

B - Planter Application Button

C - Performance Monitor Button

D - Display Button

E - Message Center Button

Main Menu

Buttons and Softkeys appear similar. Buttons simply activate a feature or transfer to a new screen. Softkeys open screens where set up and data entry are possible.

The Primary Menu (A) button transfers to a screen with selectable buttons for each monitor.

Select a button to transfer to the desired application. The following are a few examples.

  • (B) Opens Planter application page. Various planter functions are available.
  • (C) Opens Performance Monitor Totals page. Various tractor performance values are available.
  • (D) Opens Display Main page. Various monitor functions are available.
  • (E) Opens Message Center page. Various messages are available.

The following screen area information is for translation purposes to assist an operator using a screen with English text when the operator does not read English. The left side of the list remains English to match the screen and the right side of the list is translated along with the rest of this manual. The operator matches the English words on screen with English words listed on left side of list and views the translated meaning.

Screen Area Information

Planter - Planter
Performance Monitor - Performance Monitor
Message Center - Message Center
Original GreenStar Monitor - Original GreenStar Monitor
GreenStar 2 Pro - GreenStar 2 Pro
Layout Manager - Layout Manager
Display - Display

A59326
A59326-UN-15FEB07

A64358
A64358-UN-11MAR09

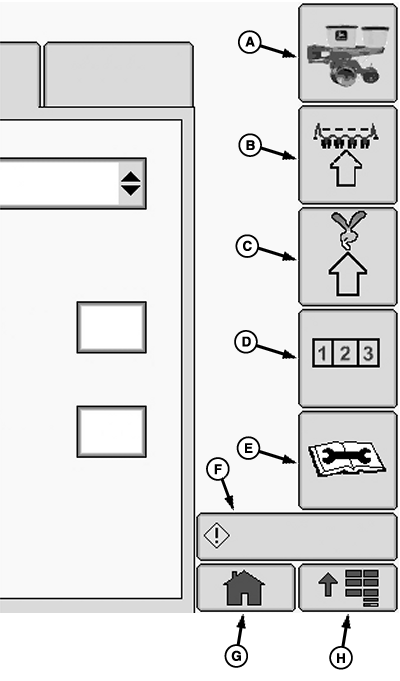

Softkey Title

A - Main Softkey

B - Configuration Softkey

C - Rates Softkey

D - Totals Softkey

E - Diagnostics Softkey

F - Message Center Button

G - Home Button

H - Menu Button

I - Title

Planter Application Screens

Select Softkeys (A) through (E) to transfer to various planter screens. A title (I) at the top of each screen matches the name of the softkey.

Once any screen is displayed, it is not necessary to return to the primary menu before selecting another softkey in the same application. Example: Assume that the current screen is already Planter - Rates screen. If a procedure indicates to select the Primary Menu button (H), then the Planter button, then the Configuration softkey (B) to reach Planter - Configuration screen, simply select the Configuration softkey instead. The display is already on a Planter screen. There is no need to start from the Primary Menu again.

  • (A) Transfers to Main planter screen, often referred to as the Run page.
  • (B) Transfers to configuration screen for frame, sensor, and drives set up.
  • (C) Transfers to configuration screen with Crops and Rates.
  • (D) Transfers to screen with Totals and Calculators.
  • (E) Transfers to diagnostic screen for Readings and Tests.
  • (F) Transfers to Message Center.
  • (G) Transfers to Home screen.
  • (H) Transfers to primary Menu screen with buttons for different applications.

A59328
A59328-UN-11NOV08

A - Inactive Tab

B - Active Tab

Function Tabs

Select Tabs to activate various options on a screen.

A59588
A59588-UN-12MAR07

A64363
A64363-UN-11MAR09

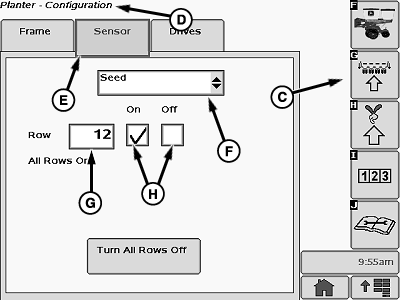

A - Primary Menu Button

B - Planter Application Button

C - Configure Softkey

D - Planter Configuration Screen

E - Sensor Tab

F - Drop Down Box

G - Row Input Box

H - On and Off Check Boxes

Navigation Example A:

Refer to the following procedure using an active monitor.

  1. Select Primary Menu button (A).

  2. Select Planter Application button (B).

  3. Select planter Configure softkey (C). Planter - Configuration (D) screen title is now displayed.

  4. Select Sensor tab (E).

  5. Select drop-down box (F) and choose Seed.

  6. Select Row input box (G) and enter an individual row number.

  7. Select On or Off check box (H) to configure selected row.

Screen Area Information

Planter Configuration - Planter Configuration
Sensor - Sensor
Seed - Seed
Row - Row
On - On
Off - Off

A59325
A59325-UN-19FEB07

Menu

A59551
A59551-UN-08MAR07

Planter Button

A59172
A59172-UN-29JAN07

Configuration Softkey

Navigation Example B:

All procedures in this manual use a condensed version of Navigation Example A shown on previous page. The following steps are an example of Navigation Example A, simplified. Each bold word is a selectable screen item. The arrows ( >> ) indicate each screen item to select in sequence. Once common buttons, softkeys, and screen titles become familiar, this technique shortens the reading time needed to accomplish a task. It is not necessary to begin at the Primary Menu if the display is already on the destination screen.

Use an active monitor to become familiar with the display and this style of navigation. If needed, refer back to previous descriptions in this section while learning screen items.

  1. Select Primary Menu >> Planter button >> Configuration softkey >> Sensor tab.

  2. Select Seed from drop-down box.

  3. Select Row input box and enter an individual row number. Select On or Off check box to configure selected row.

Screen Area Information

Planter Configuration - Planter Configuration
Sensor - Sensor
Seed - Seed
Row - Row
On - On
Off - Off
