Adjust Parallel Arm Height Switch

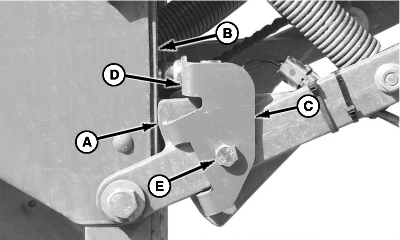

A48187
A48187-UN-18OCT01

A - Stop

B - Frame

C - Bracket

D - Flat Surface

E - Cap Screw

This switch is used on all integral planters except 1720 16 Row.

  1. Raise machine until lower parallel arm stop (A) contacts planting unit frame (B).

  2. Loosen cap screw (E).

  3. Rotate sensor bracket (C) until flat surface (D) is 20 mm (3/4 in.) from planting unit frame (B).

  4. Tighten cap screw (E).

  5. Repeat on other height sensor, if equipped.

OUO6074,0000FCA-19-20071008
