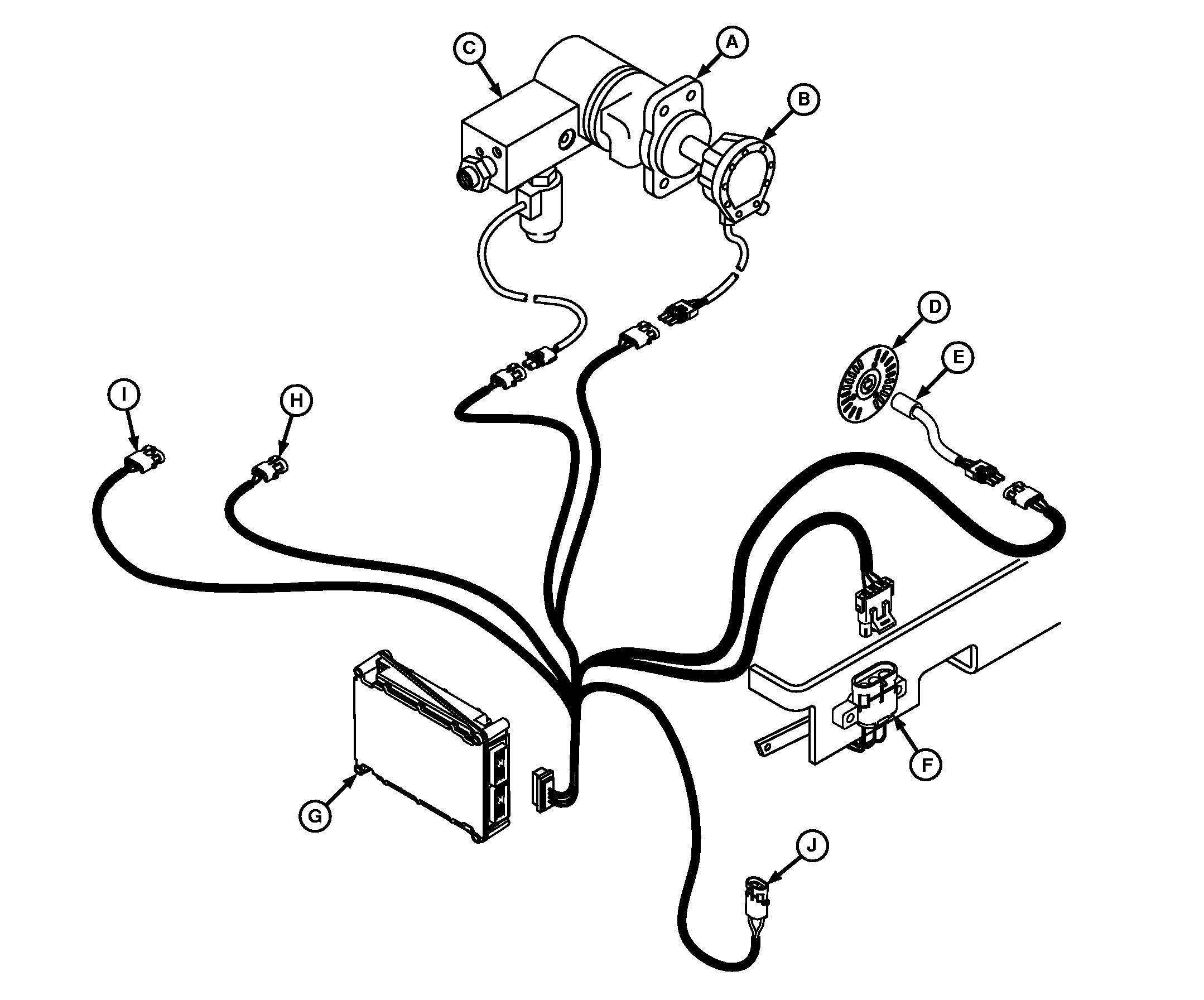

Single Motor System—Drawn Planters

A52535-UN-14AUG03

A - Motor

B - Speed Sensor

C - Speed Controller Valve

D - Sensor Disk

E - Wheel Motion Sensor

F - Height Sensor

G - Seed Monitor/Variable Rate Drive Wedgebox

H - ECU Connector

I - RPM Connector

J - Mod Power
