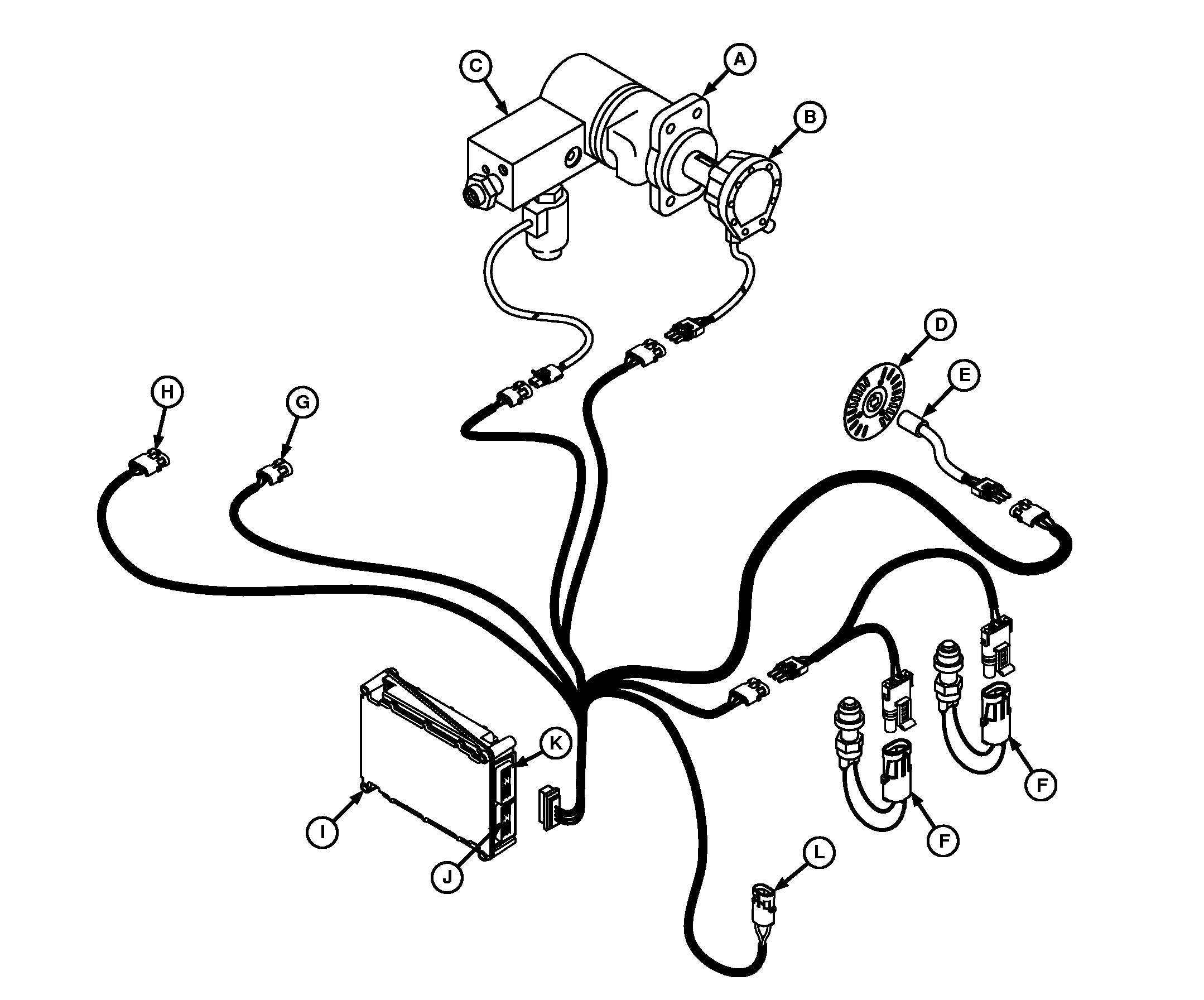

Single Motor System—Integral Planters

A52536-UN-14AUG03

A - Motor

B - Speed Sensor

C - Speed Controller Valve

D - Sensor Disk

E - Wheel Motion Sensor

F - Height Sensor

G - ECU Connector

H - RPM Connector

I - Wedgebox

J - Seed Monitor Connector

K - VRD Connector

L - Mod Power
