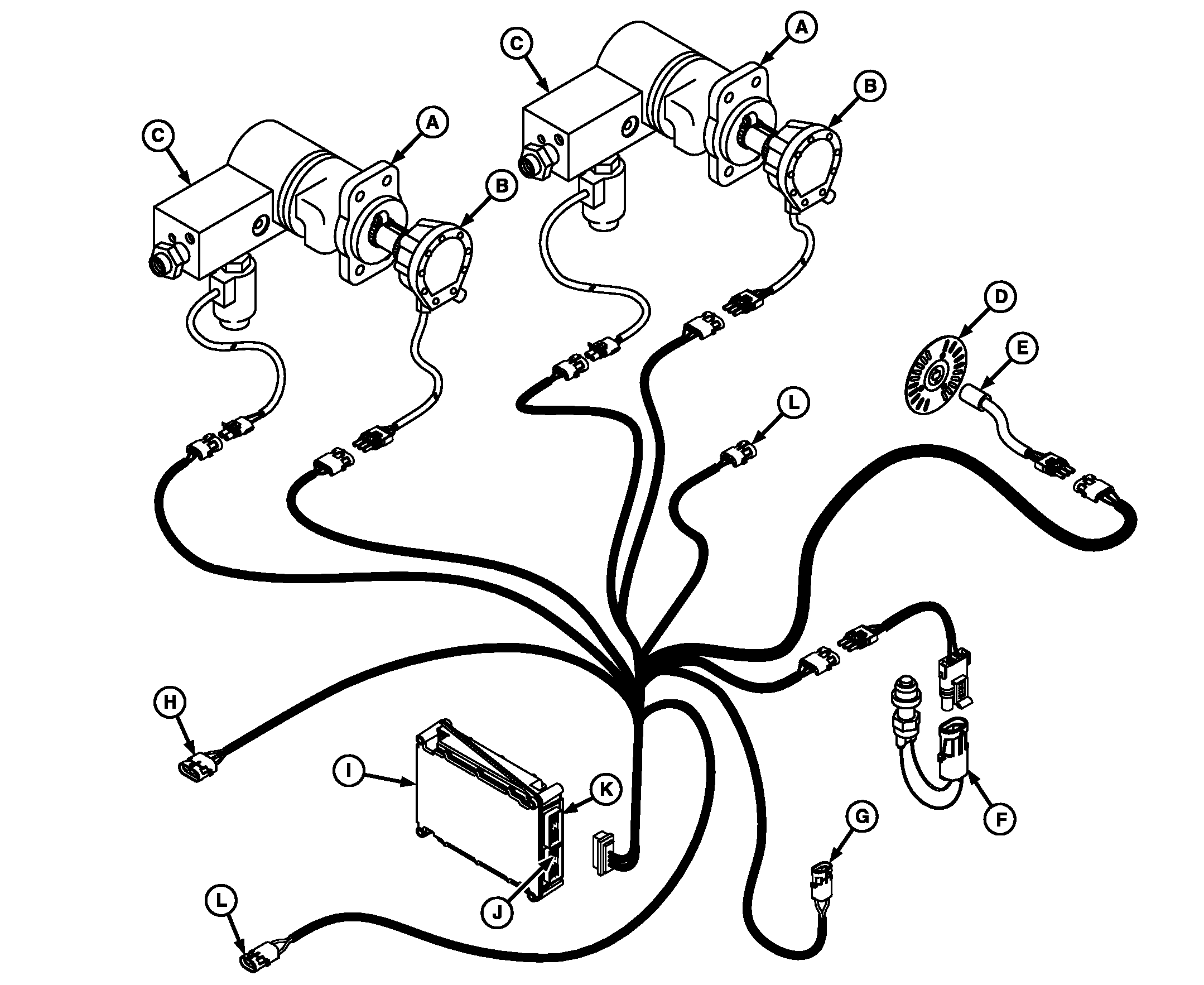

Dual Motor System—Integral Planters (Except 1720 16R)

A52538-UN-05APR04

A - Motor

B - Speed Sensor

C - Speed Controller Valve

D - Sensor Disk

E - Wheel Motion Sensor

F - Height Sensor

G - Mod Power

H - RPM Connector

I - Wedgebox

J - Seed Monitor Connector

K - VRD Connector

L - Right Disconnect
