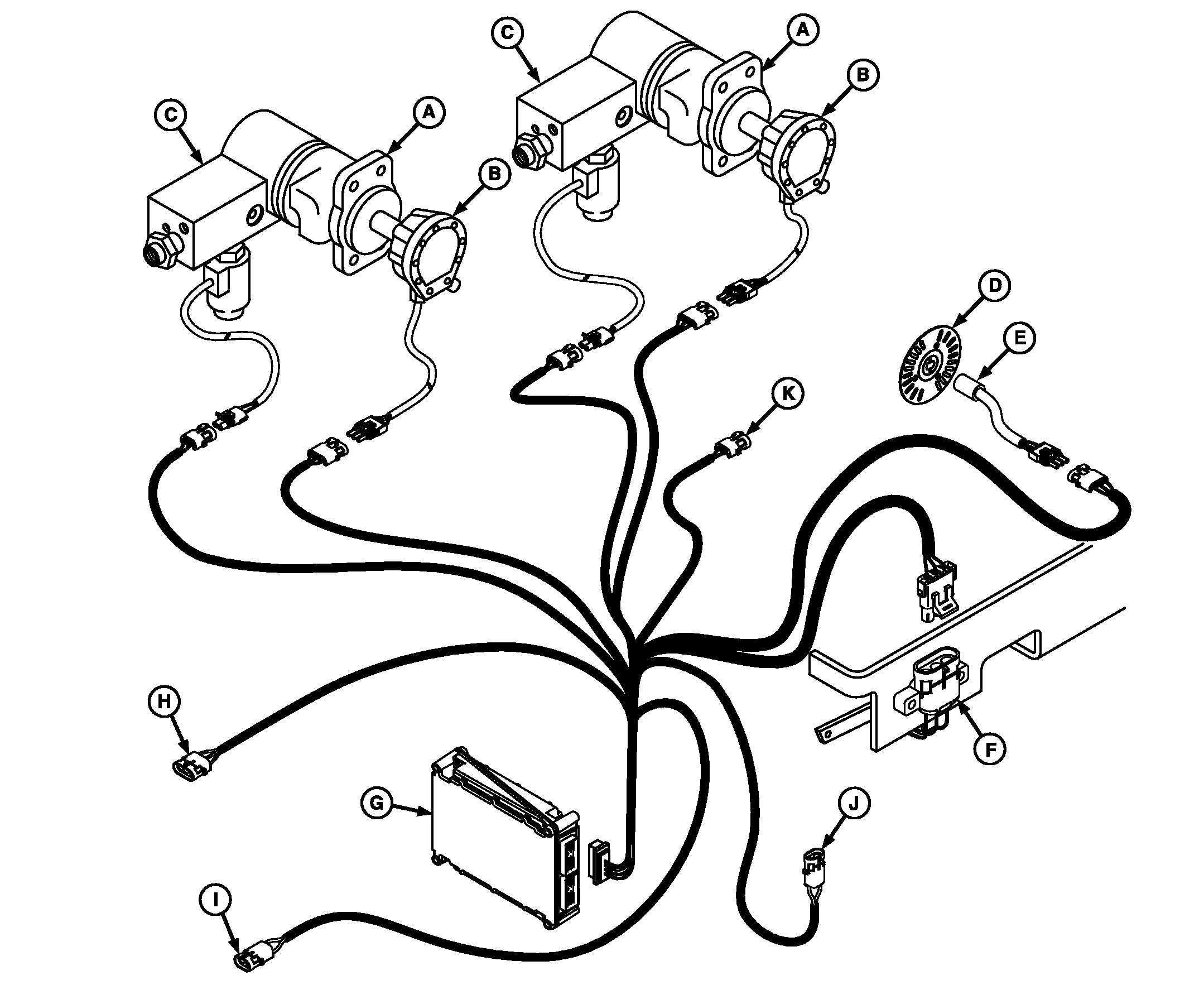

Dual Motor System—Drawn Planters (And 1720 16R Integral Planter)

A52537-UN-05APR04

A - Motor

B - Speed Sensor

C - Speed Controller Valve

D - Sensor Disk

E - Wheel Motion Sensor

F - Height Sensor

G - Seed Monitor/Variable Rate Drive Wedgebox

H - RPM Connector

I - ECU Connector

J - Mod Power

K - Right Disconnect
