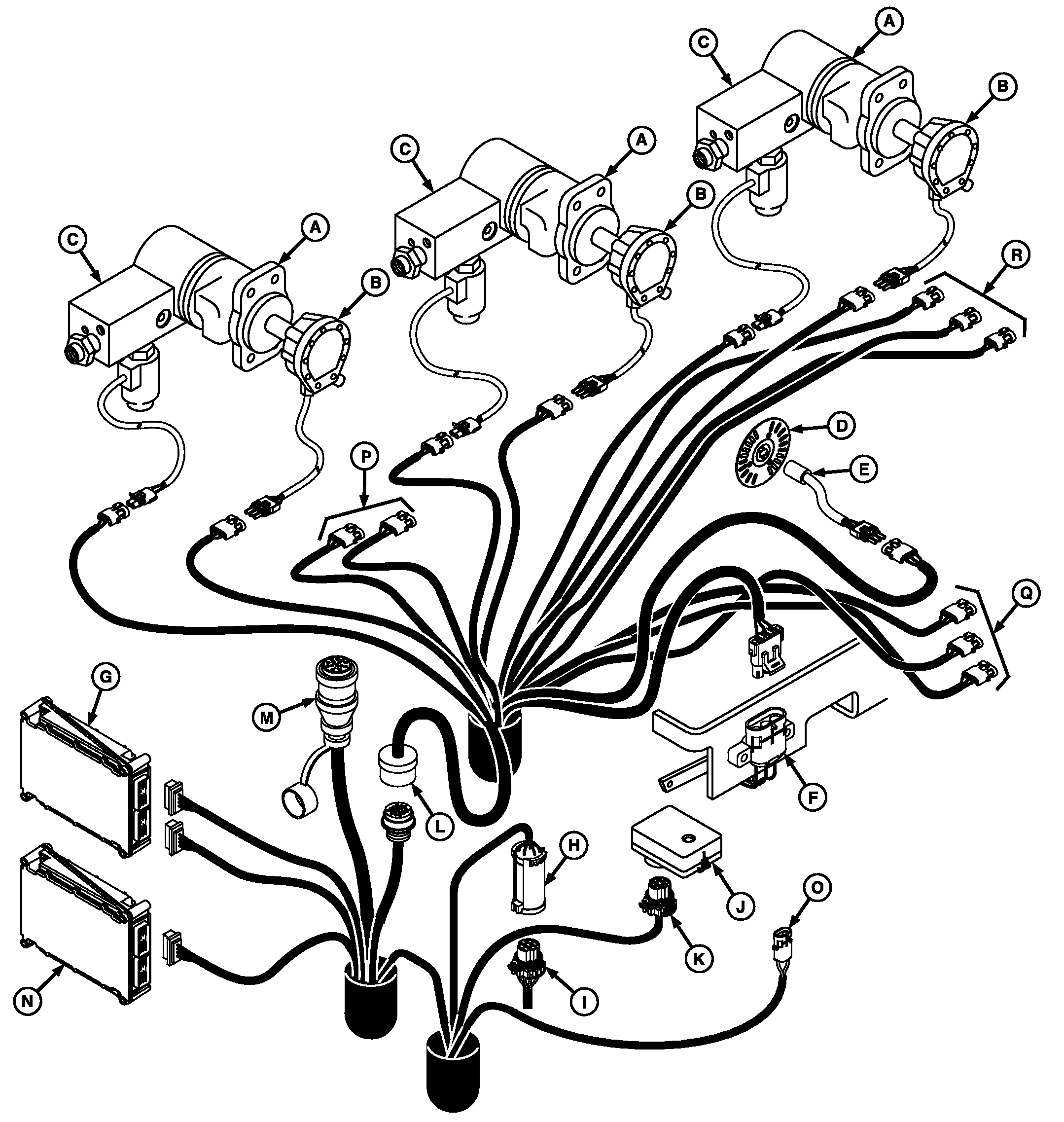

Three Motor System—Deere/Bauer

A52539-UN-05APR04

A - Motor

B - Speed Sensor

C - Speed Controller Valve

D - Sensor Disk

E - Wheel Motion Sensor

F - Height Sensor

G - Master Wedgebox

H - CAN IN

I - CAN Extension Harness

J - Terminator

K - CAN OUT

L - 37-Pin Connector

M - 57-Pin connector

N - Slave Wedge Box

O - Mod Power

P - Fertilizer Pressure

Q - Half-Width

R - Vacuum Sensors
