Application Rates

1.

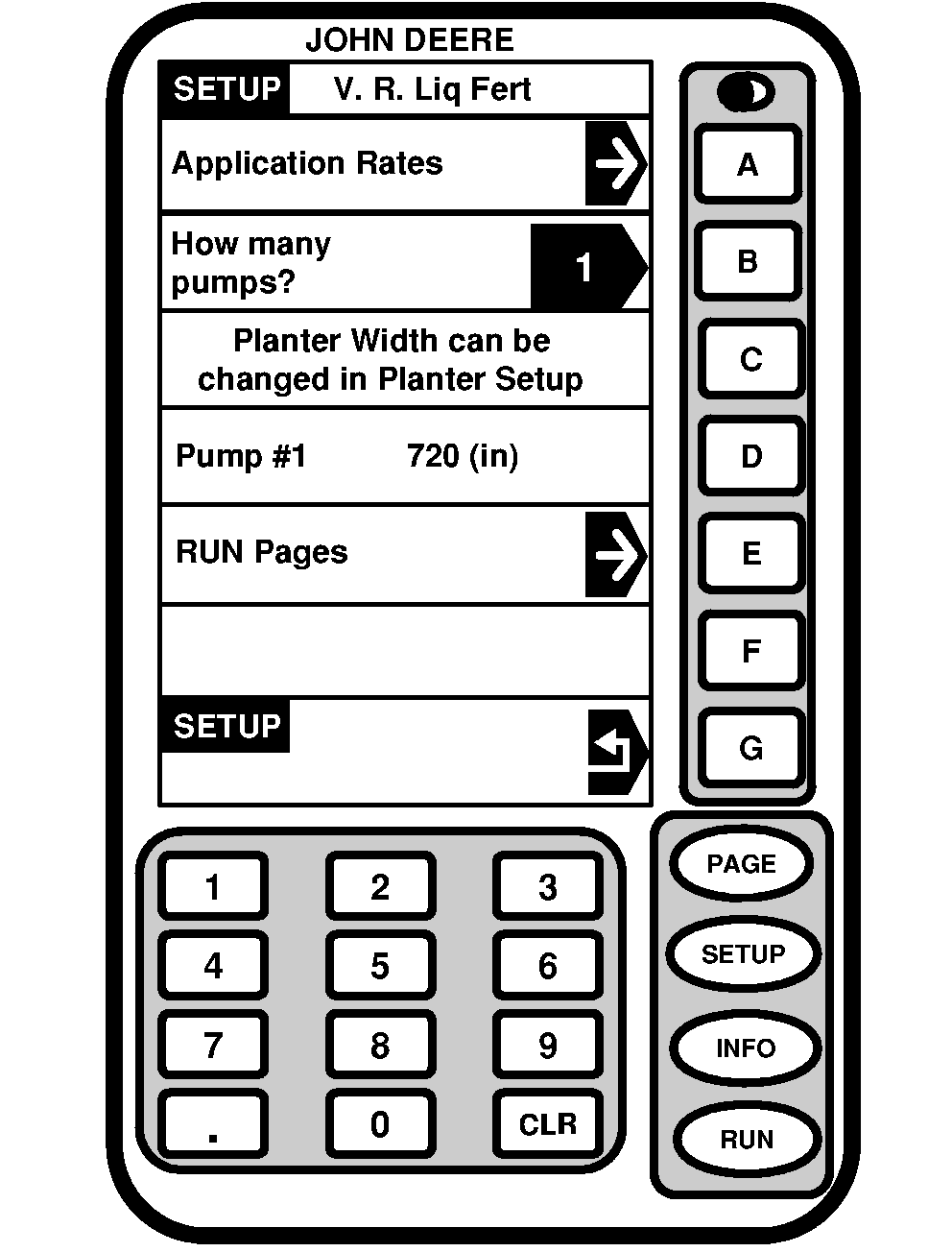

   A65056-UN-30JUL09

   Select SETUP >> V.R. Liq Fert.

---




2. Select key B and enter number of pumps on machine.

3. Select Application Rates option.

   Screen Area Information
   SETUP	Variable Rate Liquid Fertilizer
   Application Rates			A
   How many pumps?			B
   Planter Width can be changed in Planter Setup			C
   Pump Number 1 720 (inches)			D
   RUN Pages			E
   			F
   SETUP			G

4. NOTE: If two pumps are entered, setup pumps to apply identical rates or different rates.

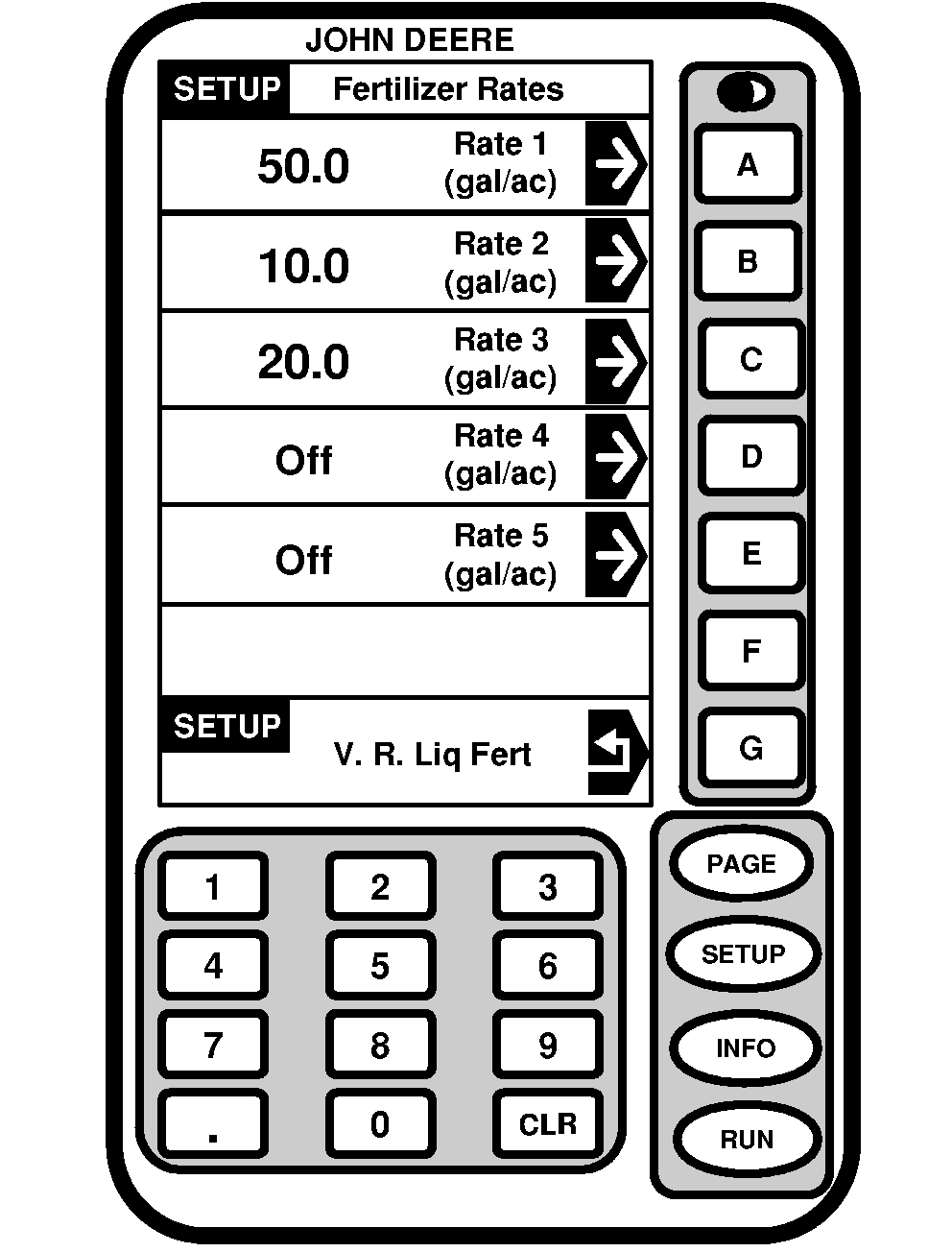

   A65057-UN-30JUL09

   Select keys A—E to setup rates.

   Screen Area Information
   SETUP	Fertilizer Rates
   50.0 Rate 1 (gallons per acre)			A
   10.0 Rate 2 (gallons per acre)			B
   20.0 Rate 3 (gallons per acre)			C
   Off Rate 4 (gallons per acre)			D
   Off Rate 5 (gallons per acre)			E
   			F
   SETUP Variable Rate Liquid Fertilizer			G

---




5.

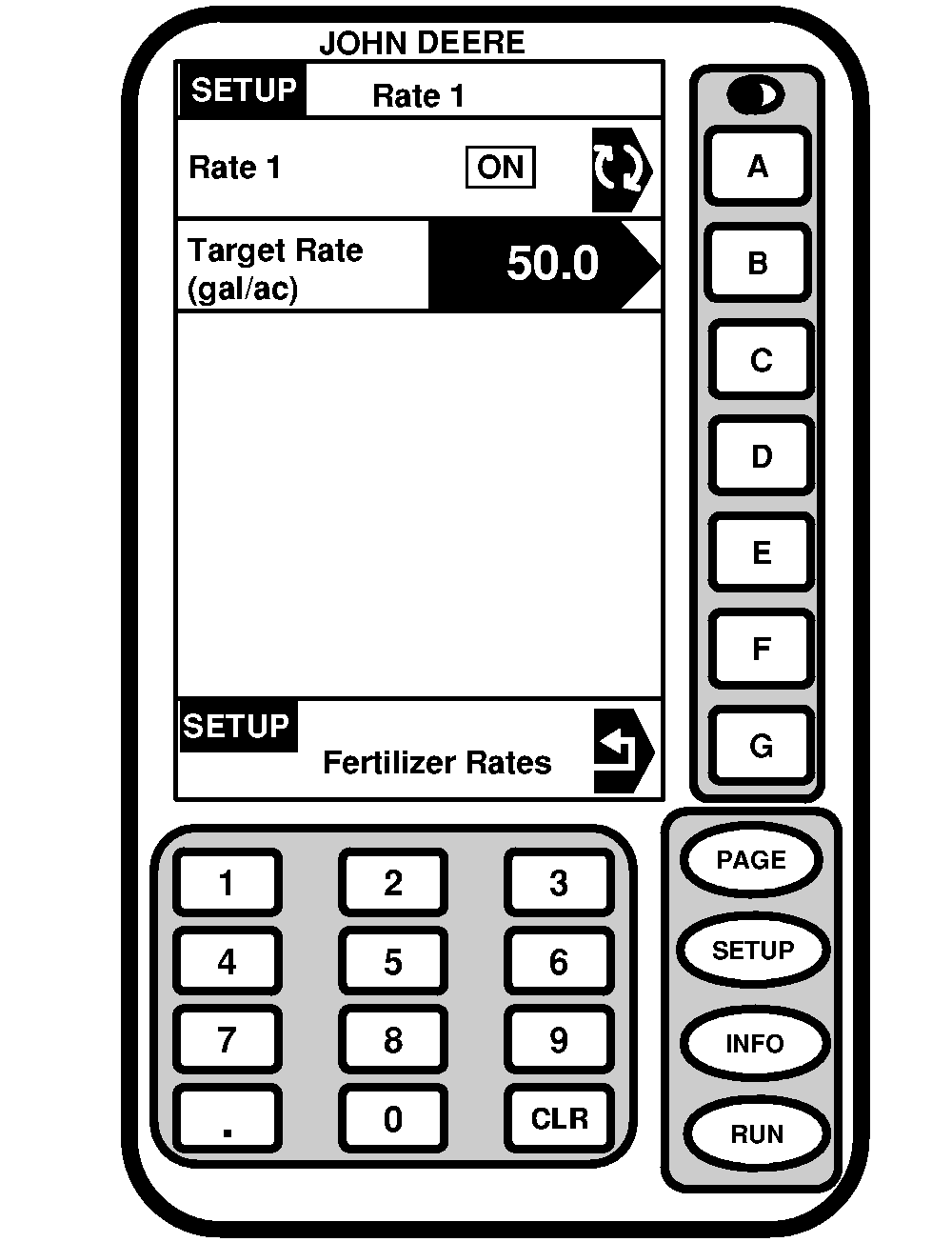

   A65058-UN-30JUL09

   Select key A to toggle rate On or Off. The rate is only available as an option on the RUN page if it is turned on.

---




6. Select key B to enter a rate with numeric keypad.

   Screen Area Information
   SETUP	Rate 1
   Rate 1 [ON]			A
   Target Rate (gallons per acre) 50.0			B
   			C
   			D
   			E
   			F
   SETUP Fertilizer Rates			G
