Relay and Fuse Location for Compressor Power Harness

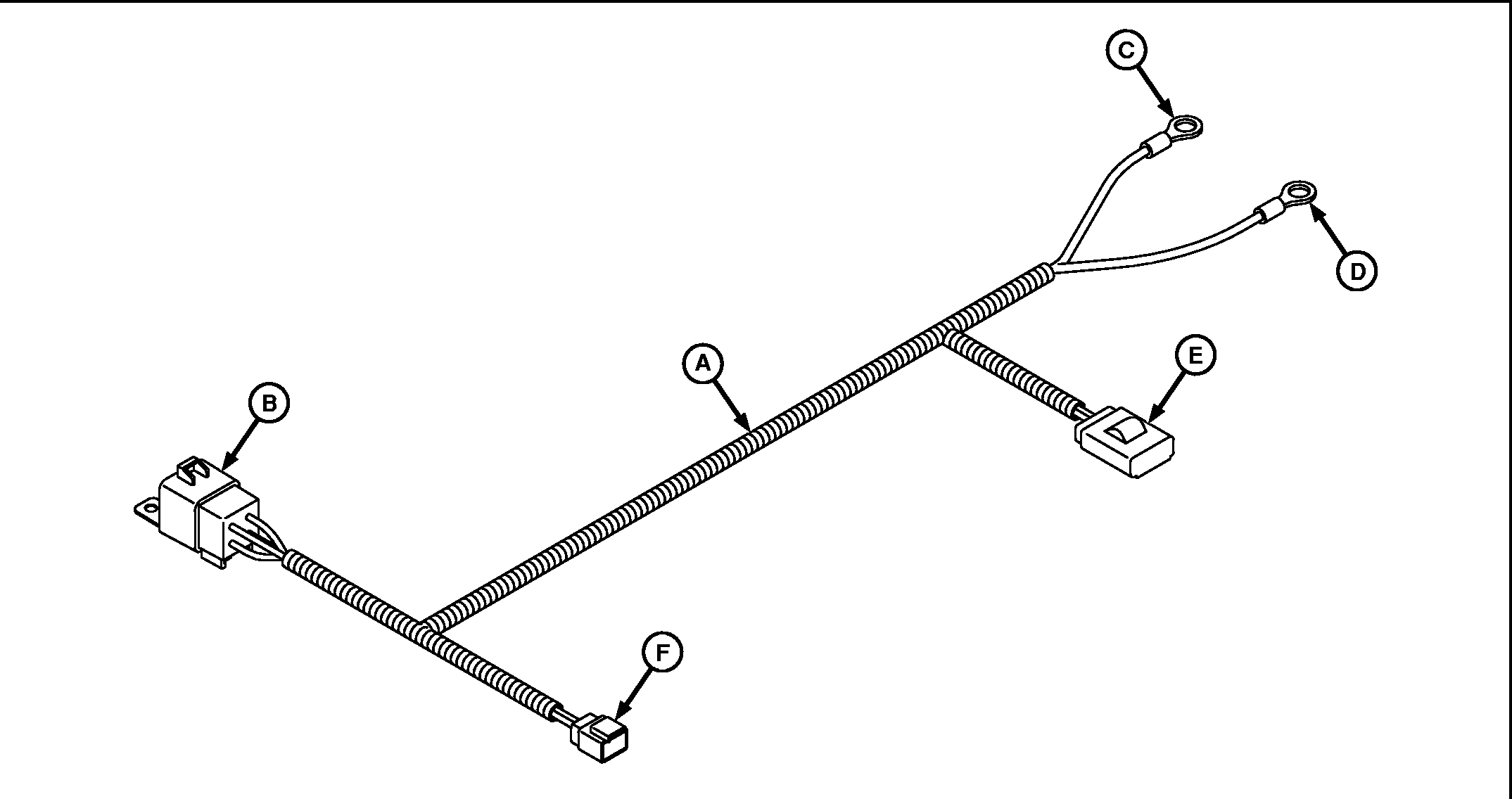

A73497-UN-10NOV11
Optional Compressor Power Harness
A - Compressor Battery Harness
B - 40A Relay
C - Battery Terminal (+)
D - Battery Terminal (-)
E - 40A Fuse
F - Convenience (4-pin)
The Compressor Power Harness supplies power from the tractor to the pneumatic down force compressor.The following pictures show fuse and relay locations.

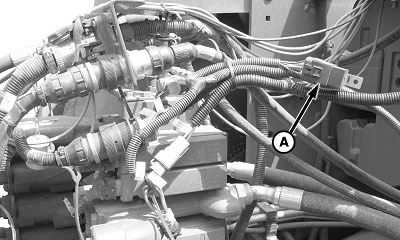

A68180-UN-15JUL10
Relay, Four Wheel Drive Tractor

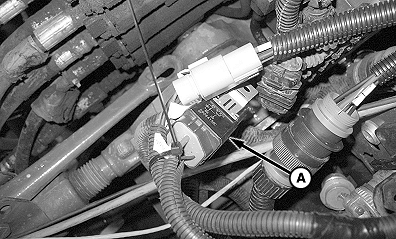

A68181-UN-15JUL10
Relay, Row Crop Tractor

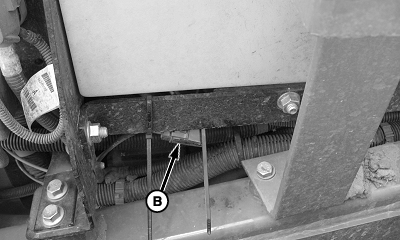

A68182-UN-15JUL10
Fuse, Four Wheel Drive Tractor

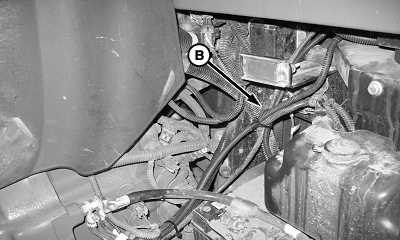

A68183-UN-15JUL10
Fuse, Row Crop Tractor
A - Relay
B - Fuse
|
WP29706,0000351-19-20120501 |
