Open and Close Hydraulic Lock-Up Valve

IMPORTANT: Avoid machine damage. Do not store machine with height reduction valve in transport position (if equipped).

A43344
A43344-UN-19APR99

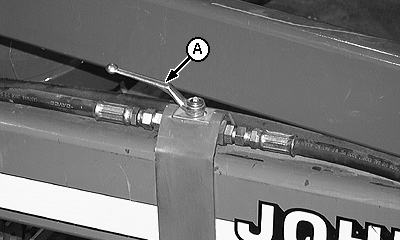

Valve Shown in Open Position

A - Hydraulic Lock-Up Valve

After making hydraulic hose connections to tractor or cart, open hydraulic lock-up valve (A).

Before transporting, raise machine and openers fully, close hydraulic lock-up valve.

AG,OUO6023,1012-19-20100527
