Hand Signals

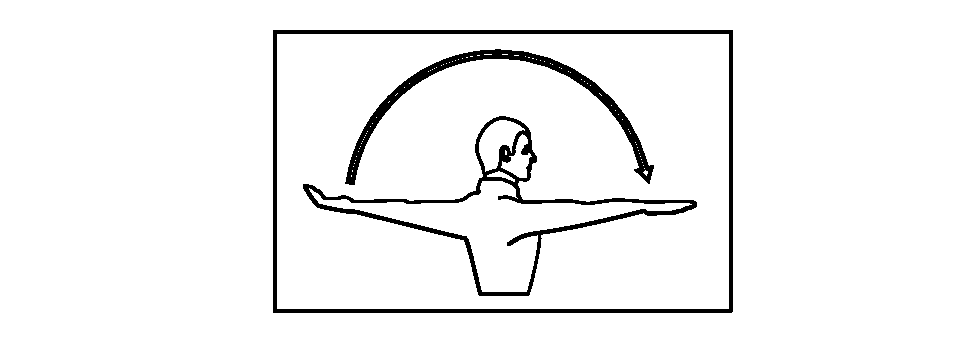

A75860-UN-08OCT12

Face the intended direction of movement, Extend one arm to the rear. Swing arm overhead and forward in the direction of intended movement until arm is horizontal with palm down.

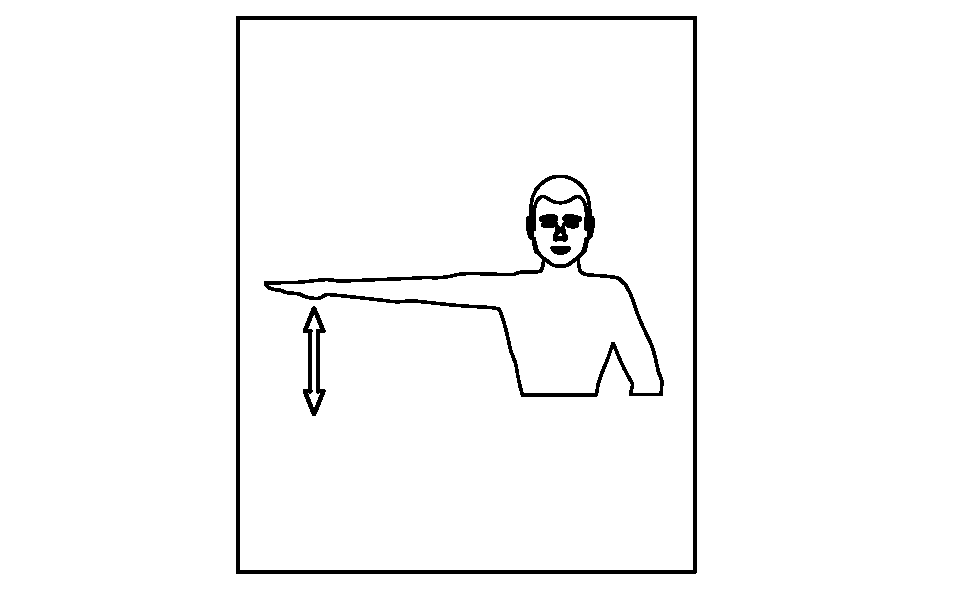

A75861-UN-10OCT12

Extend one arm horizontally with palm down. Keep arm straight. Wave arm down 45° and back to horizontal several times.

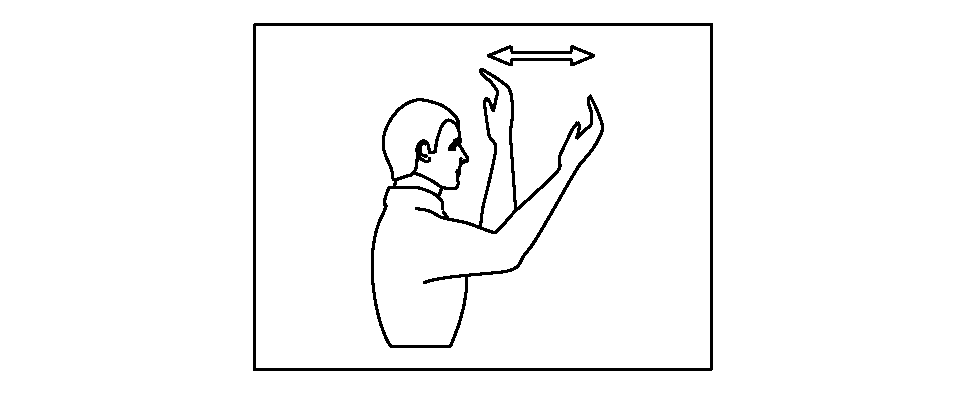

A75862-UN-10OCT12

Face person in vehicle. Hold arm up and bent at 90°. Wave hand front to rear repeatedly.

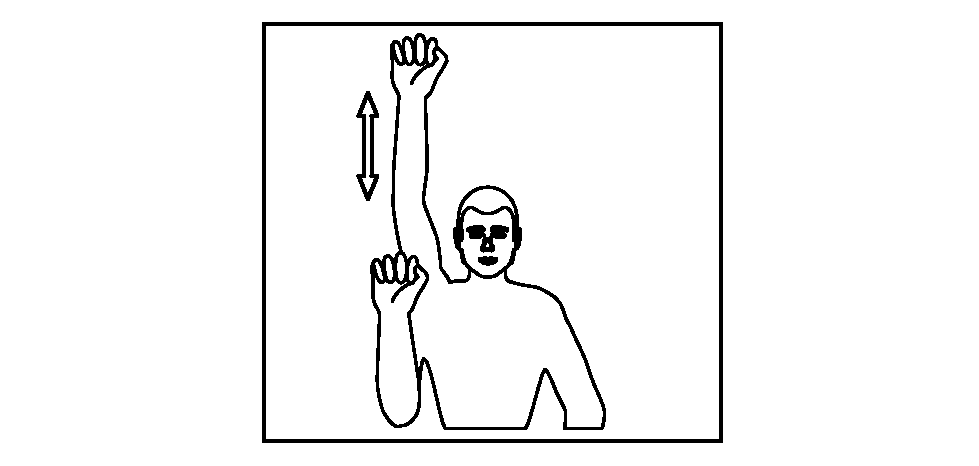

A75863-UN-08OCT12

Raise hand to the shoulder with fist closed. Extend arm up and back down to the shoulder several times.

A75864-UN-08OCT12

Place palms at ear level facing inward. Move hands closer together to indicate remaining distance to go.

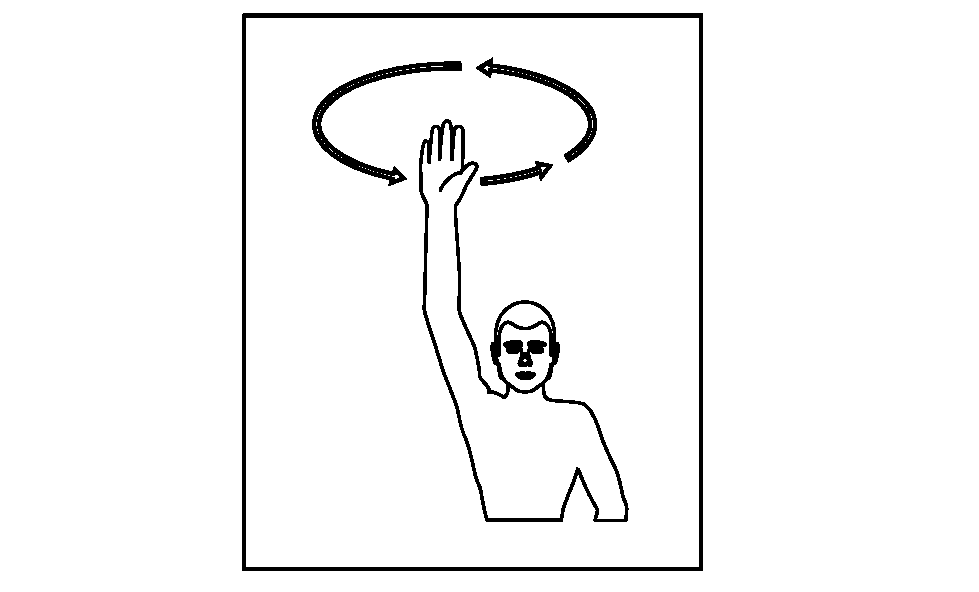

A75865-UN-06SEP12

Raise arm overhead with palm to the front. Rotate hand in large horizontal circles.

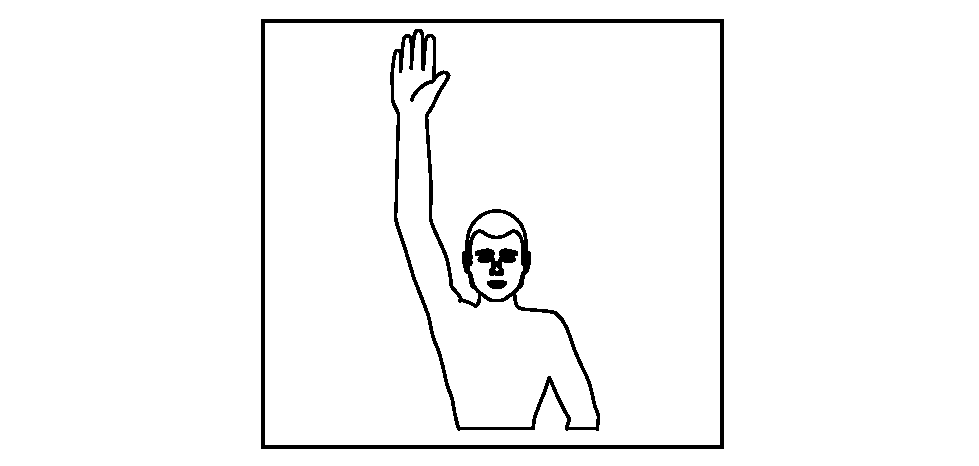

A75866-UN-08OCT12

Raise hand with palm to the front. Hold that position until the machine is stationary.

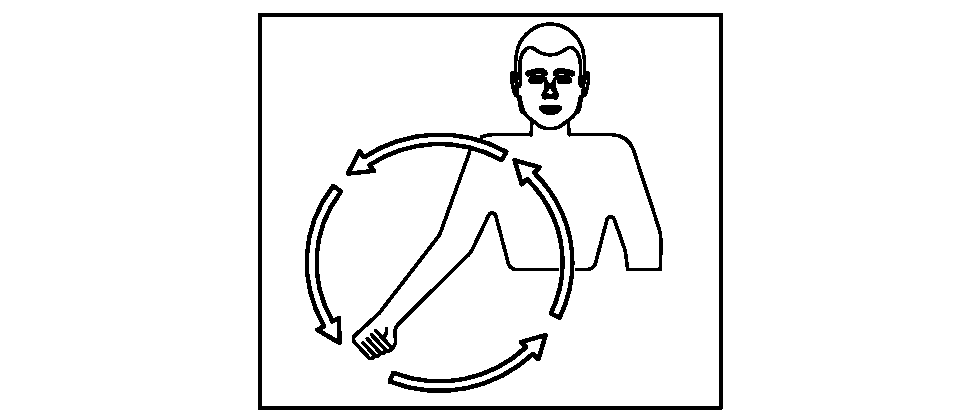

A75867-UN-08OCT12

Simulate cranking the engine by moving arm in a circular motion at waist level.

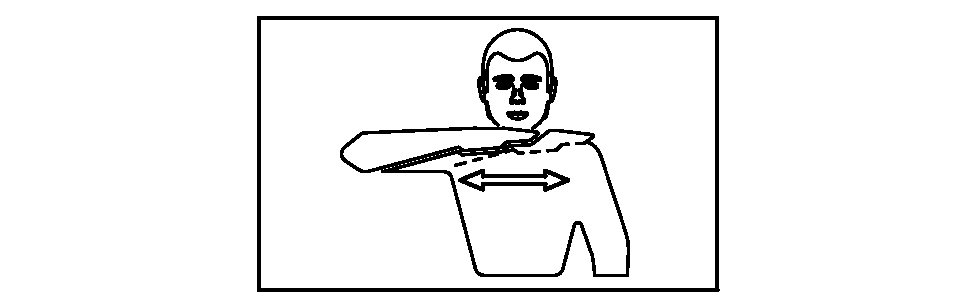

A75868-UN-08OCT12

Raise arm to horizontal position with hand facing palm down in front of neck. Move hand repeatedly left and right.

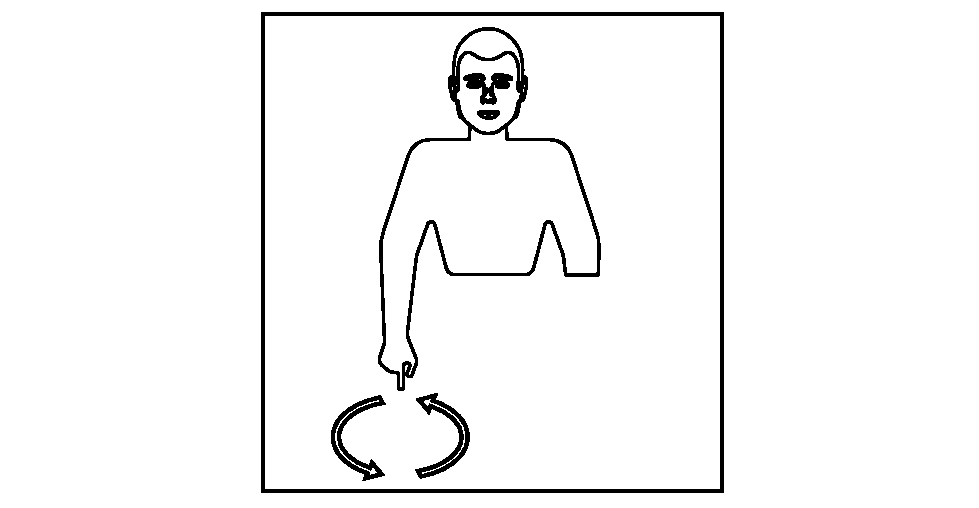

A75869-UN-08OCT12

Make circular motion with either hand pointing to the ground.

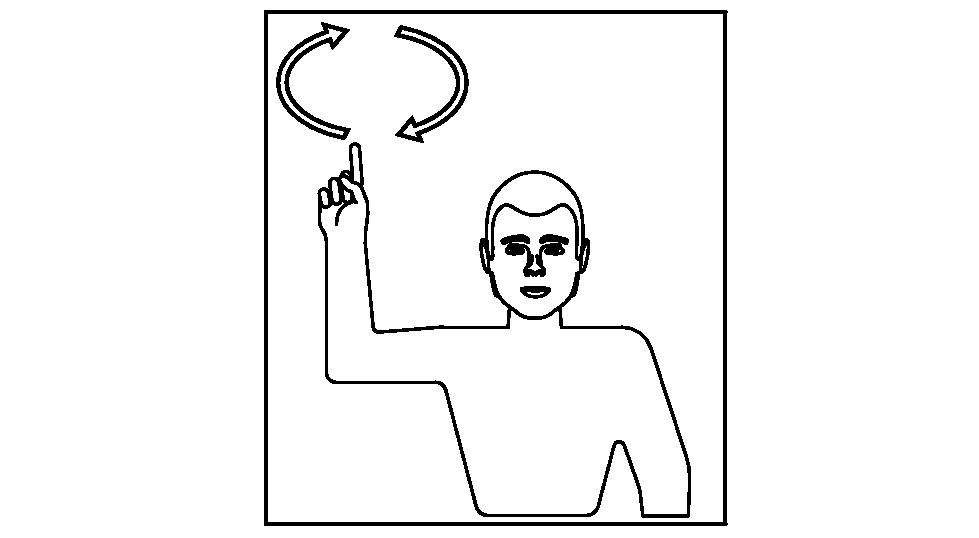

A75870-UN-08OCT12

Make circular motion with either hand at head level.
