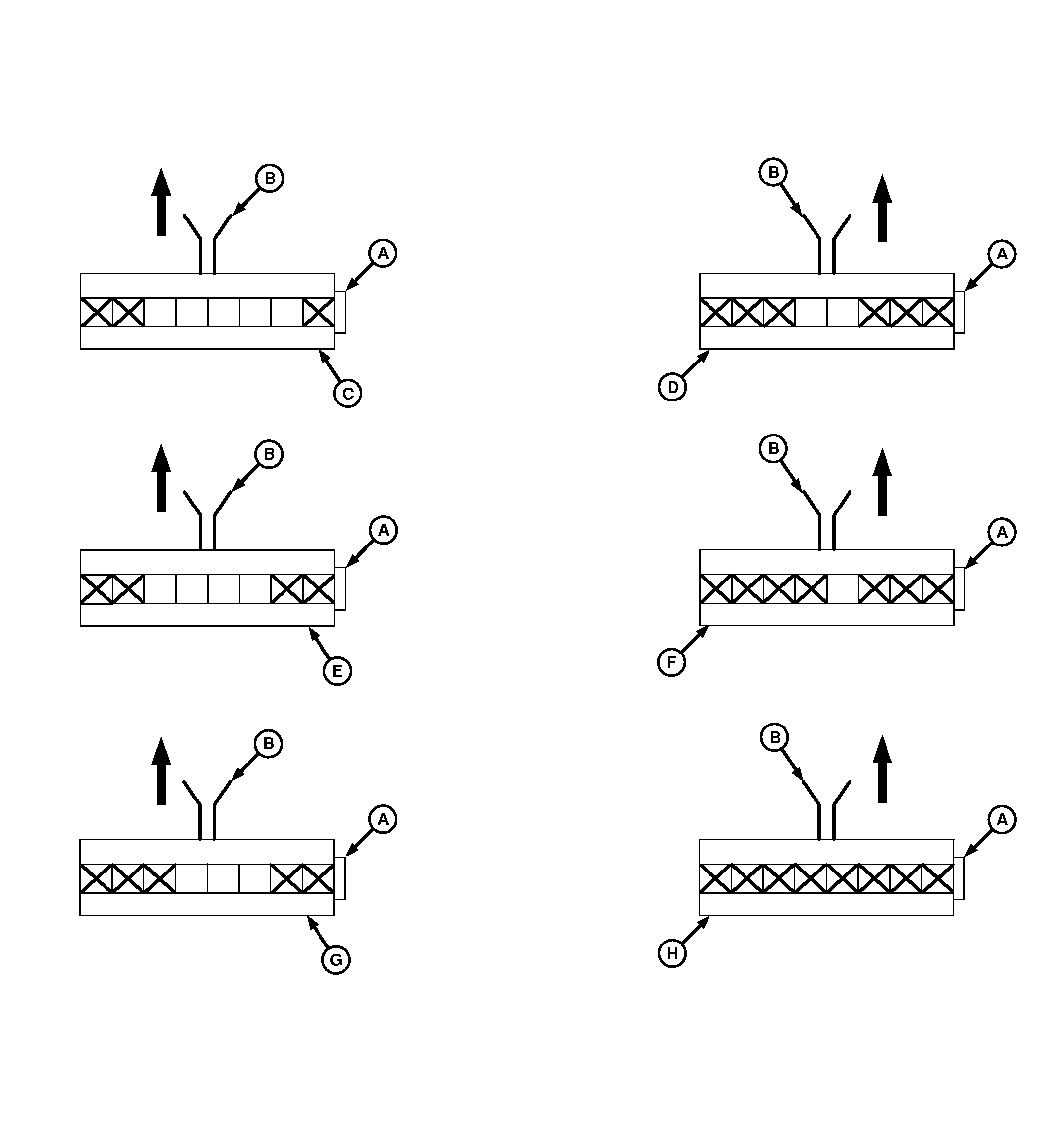

Active Meter Guide

A54017-UN-08MAR04

A - Drive End

B - Halfwidth Levers

C - 3 Run Top View

D - 6 Run Top View

E - 4 Run Top View

F - 7 Run Top View

G - 5 Run Top View

H - 8 Run Top View

NOTE: All active runs require agitator.

Bold arrow indicates front.
