Correct Tire Mount

CAUTION:

A43435
A43435-UN-25APR99

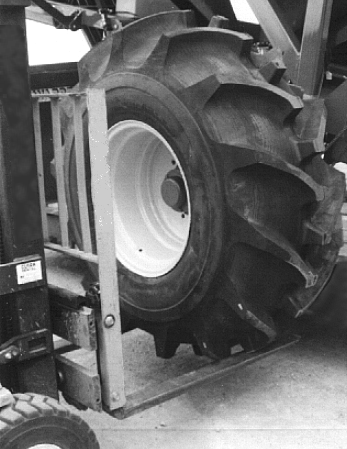

Traction Tire--Viewed from Rear

Inspect tires and wheels daily. Do not operate with low pressure, cuts, bubbles, damaged rims, or missing lug bolts and nuts.

IMPORTANT: Traction-type tires are installed in opposite direction of usual tractor applications.

Mounting dish is offset in wheel to position tire out, away from cart. Be sure to select correct wheel assembly for right-hand or left-hand application.

AG,OUO6023,1216-19-20090602
