Replace and/or Adjust Ground Speed Sensor

1.

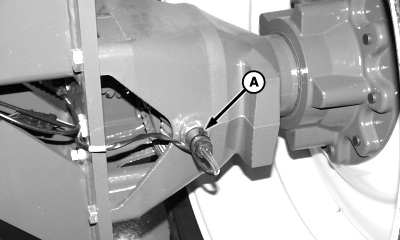

   A46130-UN-26JUN00

   A - Sensor

   Remove sensor (A) from left-hand wheel casting. Replace with new, if necessary.

---




2. NOTE: Sensor-to-sensor plate contact can be viewed through top hole in casting.

   Turn sensor into hole until it contacts sensor plate.

3. Back sensor out two turns or 4.2 mm (0.17 in.) and tighten jam nut.
