Configuration Identification

A41571
A41571-UN-24JUL97

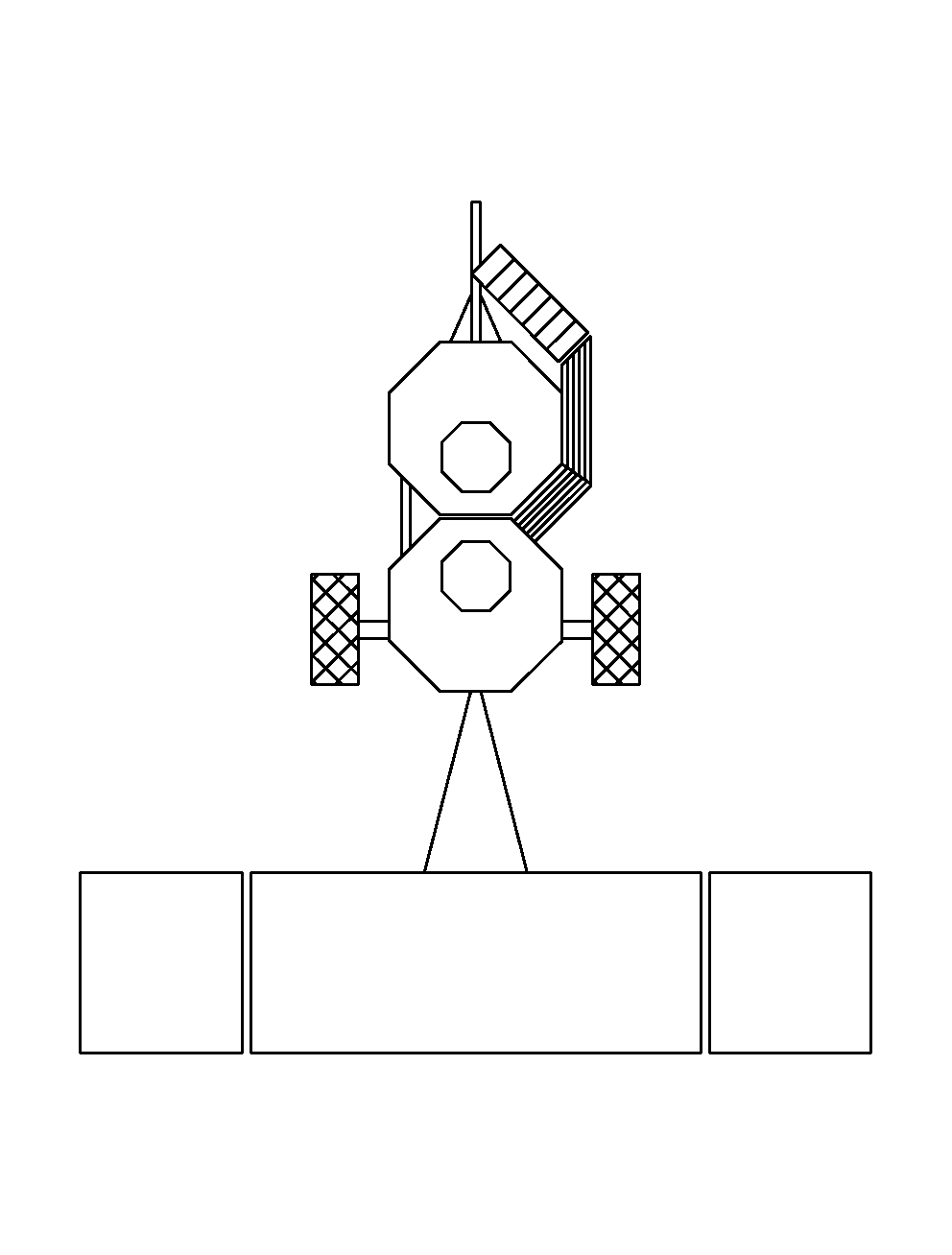

Tow-Between Configuration

A41572
A41572-UN-24JUL97

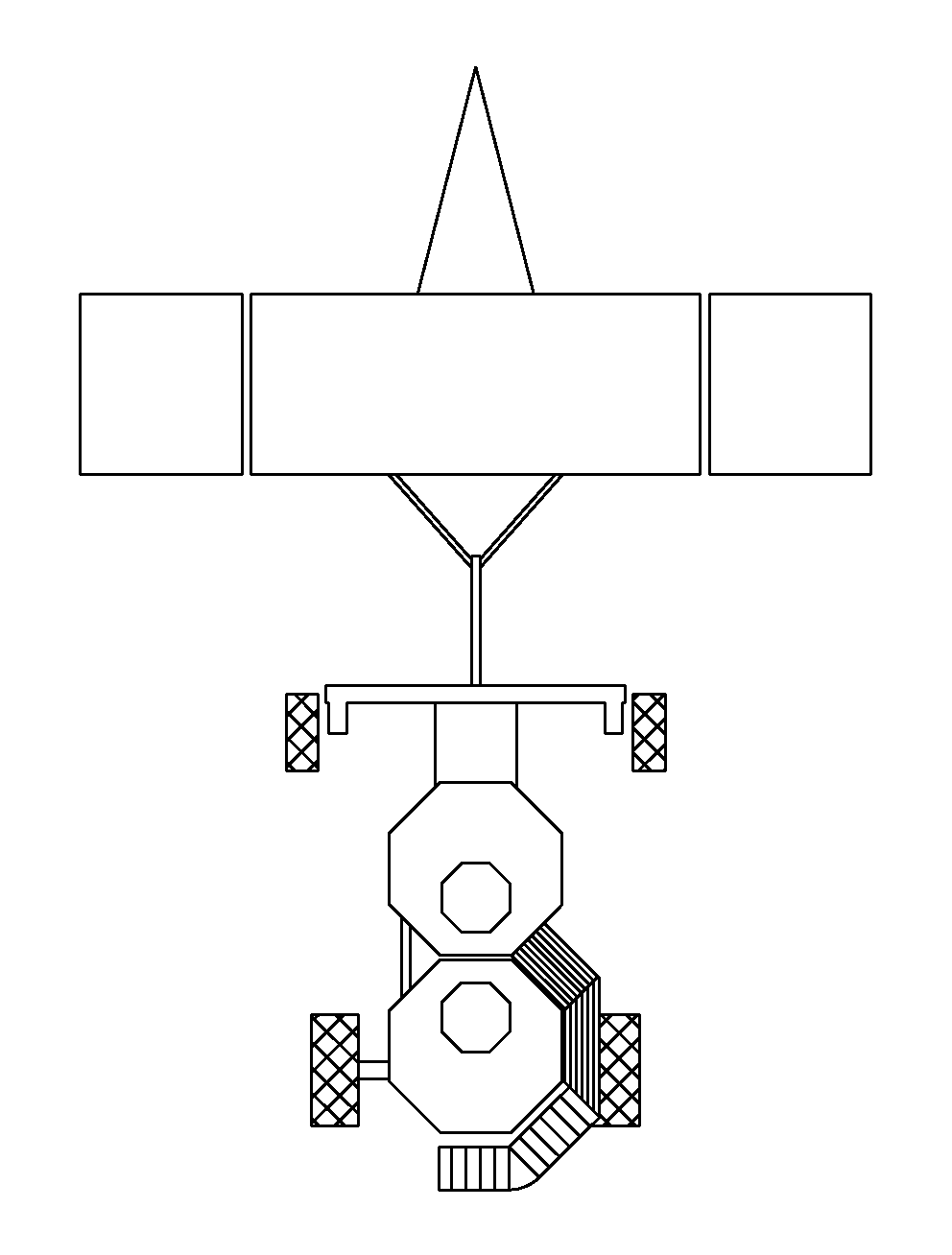

Tow-Behind Configuration

Tow-Between or Tow-Behind configuration refers to the seed carts position relative to the tractor and seeding equipment.

In tow-between configuration, seed cart is attached between the tractor and seeding equipment. Product is discharged from the rear of the seed cart in tow-between configuration.

In tow-behind configuration, seed cart is attached behind the seeding equipment. Product discharges from the front of the seed cart in tow-behind configuration.

AG,OUO6023,966-19-20000721
