Level Tow-Between Cart
A41848A-UN-22APR98

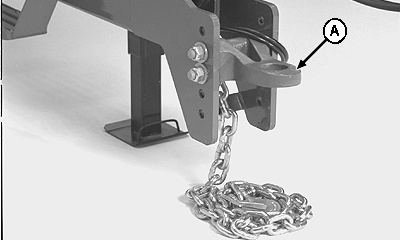

A - Hitch Link
Cart operation requires that hitch link (A) is placed in one-of-four adjustment positions to obtain a level profile when attached to the tractor drawbar.If desired, hitch link position can be adjusted for “front raised” profile to improve ground clearance at the front meter.
Hitch position holes are in increments of 57.2 mm (2.25 in.). If repositioning hitch link to different set of holes raises or lowers the front of the cart too far, hitch link can be turned over and returned to original set of holes. Due to the offset shape, turning the link over changes hitch height by 28.5 mm (1.125 in.).
After adjustment, tighten link hardware to specification.
| Item | Measurement | Specification |
| Hitch Link Hardware | Torque | 850 N˙m (626 lb-ft) |
|
AG,OUO6023,995-19-20090527 |
