Store Wireless Conveyance System

1. IMPORTANT: To avoid contact with left-hand front tire on a tow-behind cart, hopper must be stored with closed side facing out, away from cart frame.


   A46141-UN-26JUN00

   A - Hopper

   B - Spring-Loaded Pin

   AUGER ONLY: Hopper (A) is rotated so closed side is facing away from cart and secured with spring-loaded pin (B).

---




2. AUGER ONLY: With hopper turned to this position, rain can not collect in the bottom.

3.
   A82204-UN-02APR14


   A82207-UN-02APR14


   A82206-UN-02APR14


   A83890-UN-21OCT14

   A - Rear Lock Receiver

   B - Rear Lock Latch

   C - Front Lock Latch

   D - Front Lock Receiver

   E - Rear Lock Handle

   F - Lock

   G - Front Lock Handle

   H - Lock Pin

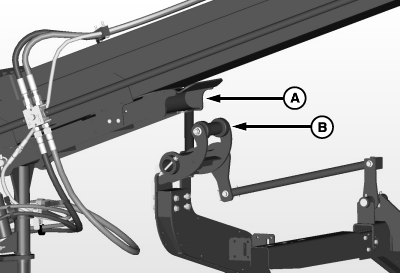

   AUGER AND CONVEYOR: Align rear latch receiver (A) with rear lock latch (B).

---

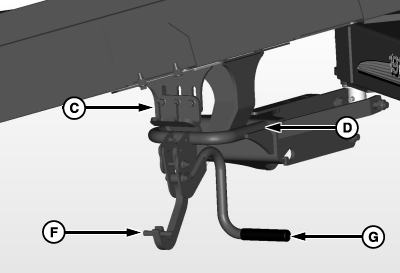

4. AUGER AND CONVEYOR: Align front latch receiver (C) with front lock latch (D).

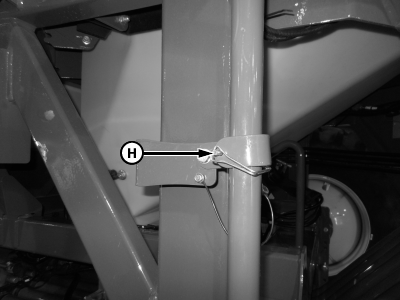

5. IMPORTANT: To avoid machine damage, verify that lock pin (H) is secure before transport.

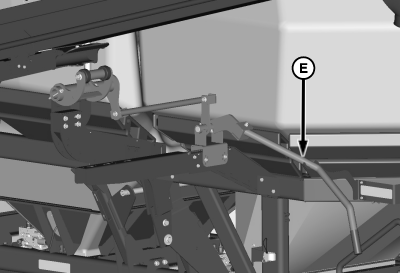

   AUGER AND CONVEYOR: Lower rear lock handle (E) until latch (B) is fully inserted into receiver (A). Secure rear lock handle with lock pin (H).

6. AUGER AND CONVEYOR: Place front lock (F) on latch (C) and push front lock handle (G) until lock is secured.

7.
   A49421-UN-14JUN02


   A49398-UN-12JUN02

   A - Handle

   B - Support Strap

   C - Clip

   AUGER AND CONVEYOR: Connect clip (C) on support strap (B) to handle (A) on spout when transporting.

---
