Store Manually Controlled Conveyance System

1. IMPORTANT: To avoid contact with left-hand front tire on a tow-behind cart, hopper must be stored with closed side facing out, away from cart frame.

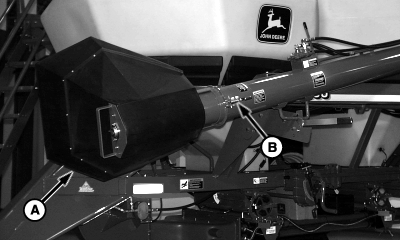

   A46141-UN-26JUN00

   A - Hopper

   B - Spring-Loaded Pin

   AUGER ONLY: Hopper (A) is rotated so closed side is facing away from cart and secured with spring-loaded pin (B).

---




2. AUGER ONLY: With hopper turned to this position, rain cannot collect in the bottom.

3.

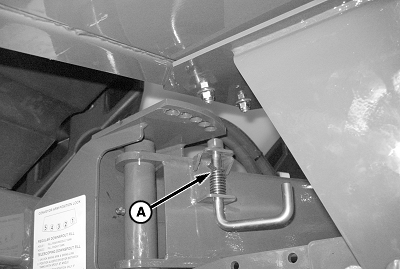

   A71191-UN-11APR11

   A - Locking Pin

   AUGER AND CONVEYOR: Release arm position lock pin (A) from hole.

---




4. IMPORTANT: All Except 350 and 430 TBT: Avoid machine damage. Swing link lock (A) must be securely locked in the straight position when conveyance is in storage position.

   350 and 430 TBT Only: Avoid machine damage. Swing link lock (B) must be securely locked in the angled position when conveyance is in storage position.

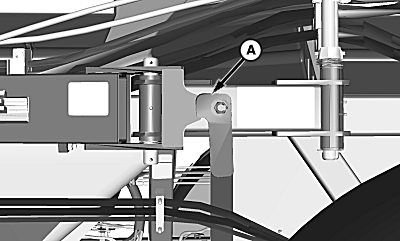

   A73097-UN-13OCT11

   All Except 350 and 430 TBT

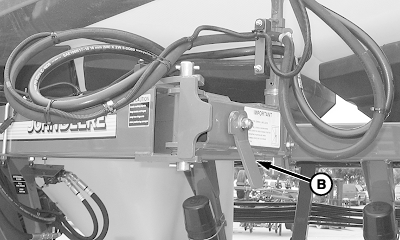

   A70726-UN-17FEB11

   350 and 430 TBT Only

   A - Swing Link Lock, Engaged

   B - Swing Link Lock, Engaged

   All Except 350 and 430 TBT: Rotate swing link in the straight position and engage lock (A) to restrict movement.

---




5. 350 and 430 TBT Only: Rotate swing link in the angled position and engage lock (B) to restrict movement.

6.

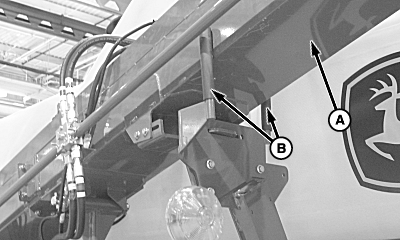

   A71129-UN-05APR11

   Conveyor Shown

   A - Conveyance Tube

   B - Guides

   AUGER AND CONVEYOR: Align conveyance tube (A) with guides (B).

---




7.

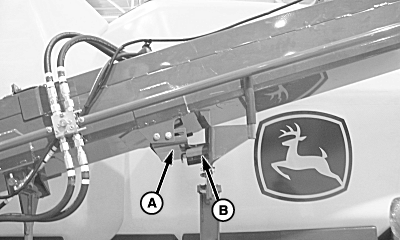

   A71128-UN-05APR11

   Conveyor Shown

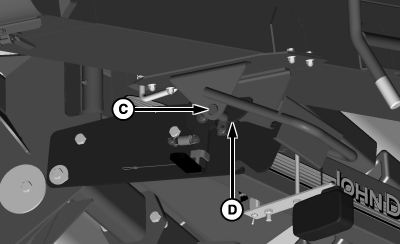

   A82774-UN-13JUN14

   A - Plate

   B - Support

   C - Latch Bracket

   D - Latch Tube Bracket

   AUGER AND CONVEYOR: Lift lower end of the conveyance tube, align plate (A) with support (B), and set latch tube (C) onto latch bracket (D).

---




8.

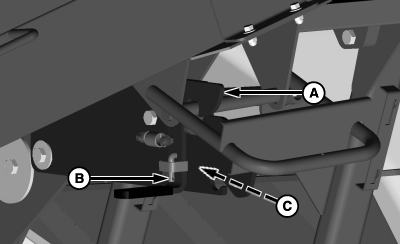

   A82775-UN-13JUN14

   A - Latch

   B - Pin

   C - Spring Pin

   AUGER AND CONVEYOR: Push lower end of the conveyance tube into latch (A).

---




9. AUGER AND CONVEYOR: Insert pin (B), front to rear, through lever and latch bracket. Turn the pin down behind locking tab as shown and install spring pin (C).

10. IMPORTANT: Avoid machine damage. Plate (B) must be properly inserted in slot (A) when in storage position.

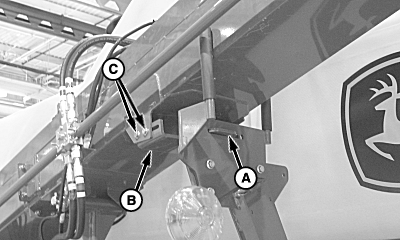

    A71132-UN-05APR11

    A - Slot

    B - Plate

    C - Cap Screws (4 used)

    AUGER AND CONVEYOR: Verify that plate extends through slot (A) as specified. If not, use cap screws (C) to adjust. (See Service section for adjustment procedure.)

    Item	Measurement	Specification
    Tab Extended Through Rear of Slot	Distance	23 mm (15/16 in.)

---




11.

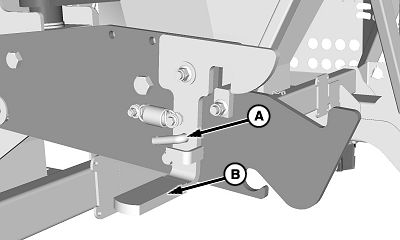

    A64739-UN-05JUN09

    A - Keeper Pin

    B - Latch

    AUGER AND CONVEYOR: Release keeper pin (A) and pull out on lever to open hook and release storage latch (B).

---




12. AUGER AND CONVEYOR: Verify that onveyance tube rests on top of latch bracket.

13.

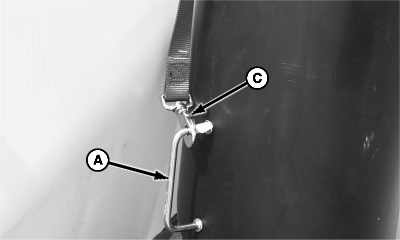

    A49421-UN-14JUN02

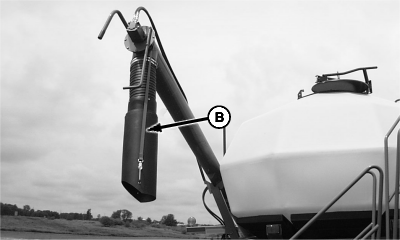

    A49398-UN-12JUN02

    A - Handle

    B - Support Strap

    C - Clip

    AUGER AND CONVEYOR: Connect clip (C) on support strap (B) to handle (A) on spout when transporting.

---
