Hydraulically Controlled Conveyance System Remote Functions

A83896
A83896-UN-29OCT14

Power Off

A84039
A84039-UN-29OCT14

Power On

Conveyance Power—These buttons turn the remote and receiver unit on and off.

A84050
A84050-UN-03NOV14

Product Conveyance Off

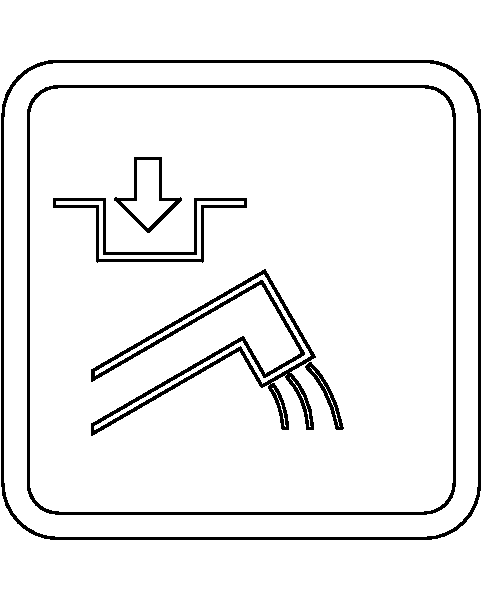

A84040
A84040-UN-29OCT14

Product Conveyance On

Product Conveyance—These buttons start and stop the conveyance drive.

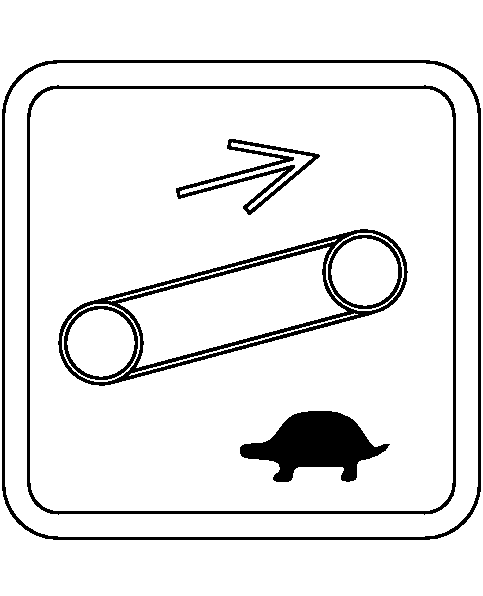

A84041
A84041-UN-29OCT14

Decrease Conveyance Speed

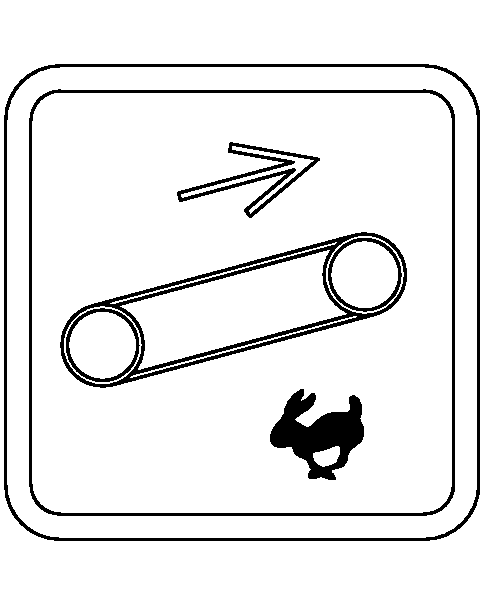

A84042
A84042-UN-29OCT14

Increase Conveyance Speed

Conveyance Speed—These buttons decrease or increase the speed of the conveyance drive.

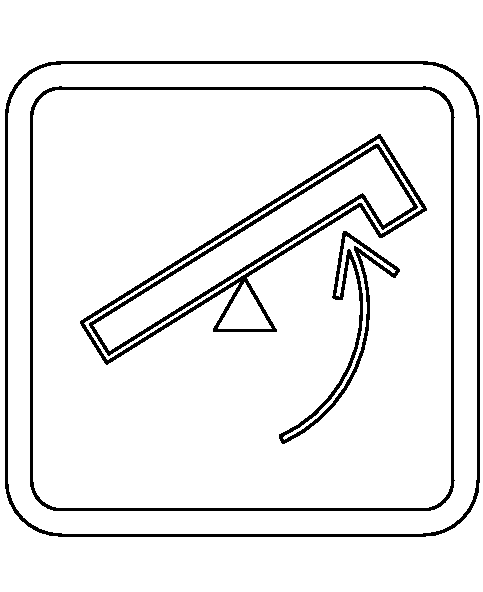

A84051
A84051-UN-03NOV14

Conveyance Elevation Up

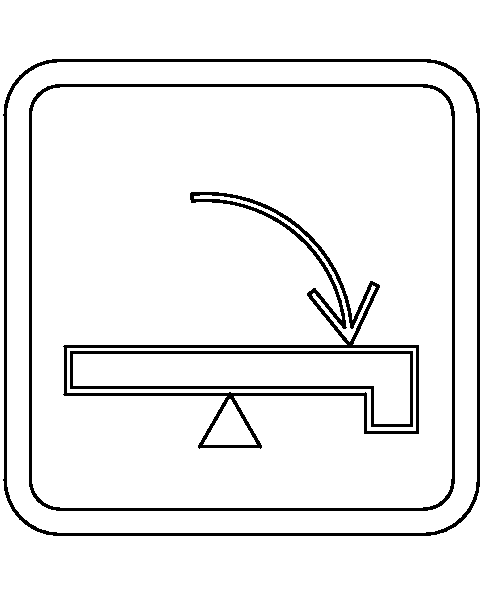

A84043
A84043-UN-29OCT14

Conveyance Elevation Down

Conveyance Elevation—These buttons tilt the conveyance up and down.

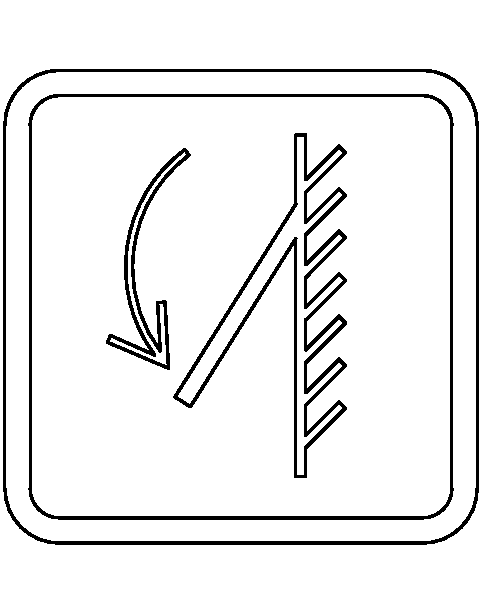

A84044
A84044-UN-29OCT14

Main Arm Retract

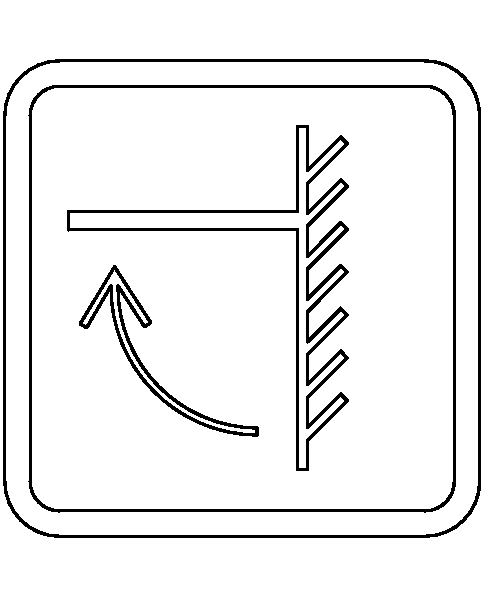

A84045
A84045-UN-29OCT14

Main Arm Extend

Main Arm Control—These buttons move the main arm towards or away from the cart.

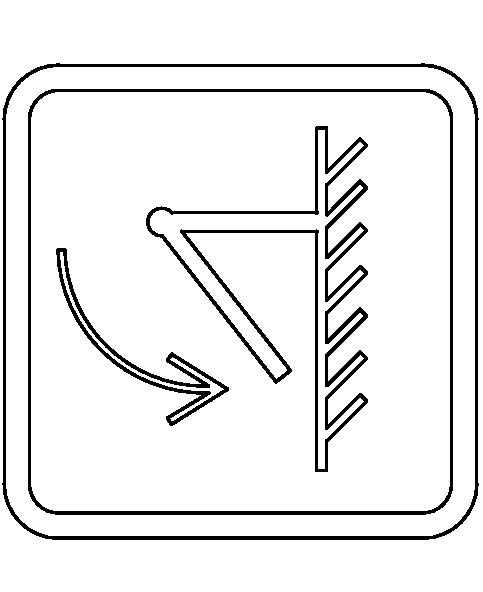

A84046
A84046-UN-29OCT14

Swing Link Retract

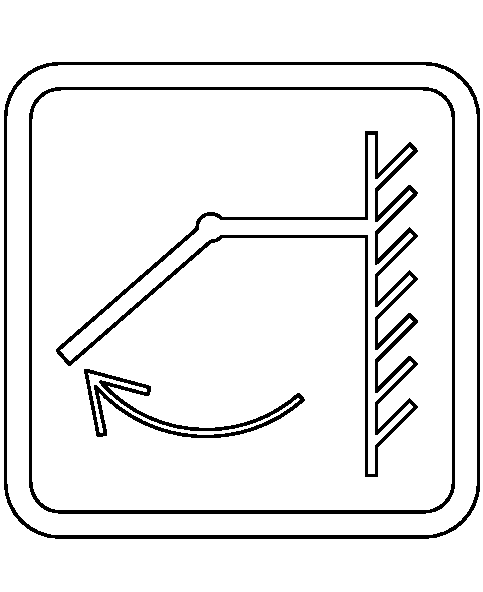

A84047
A84047-UN-29OCT14

Swing Link Extend

Swing Link Control—These buttons move the swing link towards or away from the main arm.

BB83525,00001A7-19-20141104
