Hydraulically Assisted Conveyance Remote Battery Replacement
NOTE: Annual battery replacement is recommended.

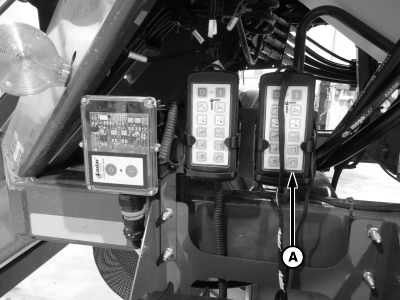

A82842-UN-19JUN14
A - Hydraulically Assisted Conveyance Wireless Remote
Replace batteries in wireless remote at the beginning of each planting season or when red LED flashes indicating low battery voltage.
|
LED Flash Pattern |
Indication |
|---|---|
|
Two groups of Three rapid flashes during power up |
Normal Operation |
|
One flash per second while remote is on |
Normal Operation |
To avoid shorter operational range and shorter battery lifespan, only use quality batteries.
To avoid corrosion during storage, remove batteries at the end of the season.
|
BB83525,00001E5-19-20141216 |
