Detach Tow-Behind Cart From Seeding Tool

CAUTION: To help prevent personal injury caused by unexpected movement of the machine:

• Park machine on level surface.
• Block tires.

1.
   A42162-UN-27OCT97


   A42168-UN-27OCT97


   A42602-UN-11MAY98

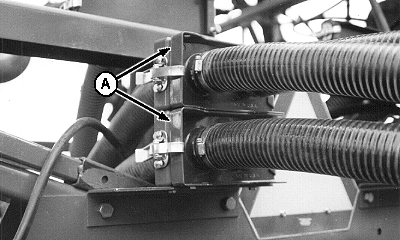

   A - Air Hose Connectors

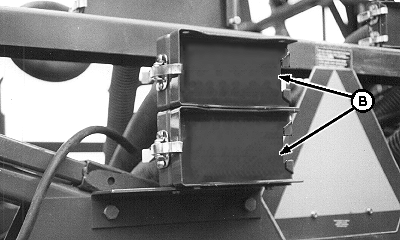

   B - Cover Plates

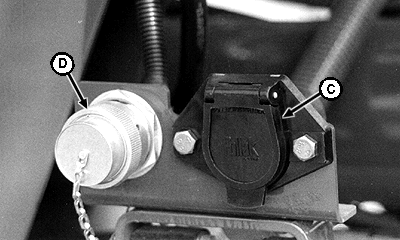

   C - Connector

   D - Connector

   Open clips to disconnect air hose connectors (A). Install coupler cover plates (B). If cover plates are not available, plug tubes with rags to keep out debris and rodents.

---




2. Disconnect cart power harness and control unit power and communications cable from connectors (C and D). Install plugs and caps.

3. Disconnect any other cables or harnesses attached at the rear of the seeding tool, including:

   • Remote Seeder Switch Cable (if equipped).

4. CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure. Refer to tractor Operators manual for SCV operation to relieve hydraulic line pressure before removing hoses.


   A42161-UN-27OCT97


   A59338-UN-19FEB07

   1830, 1835 Shown

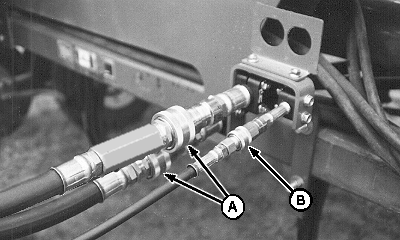

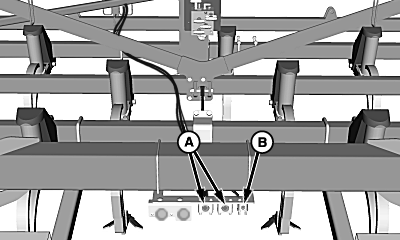

   A - Fan/Auger Hoses

   B - Motor Case Drain Hose

   Disconnect fan and auger hoses (A) and motor case drain hose (B) from couplers. Install plugs and caps.

---




5.
   A42156-UN-22OCT97

   Transport/Field Position


   A42143-UN-22OCT97

   Storage Position

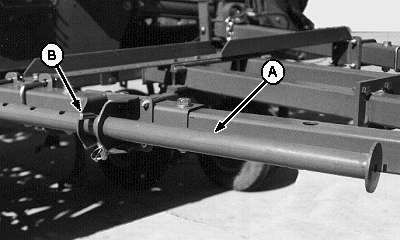

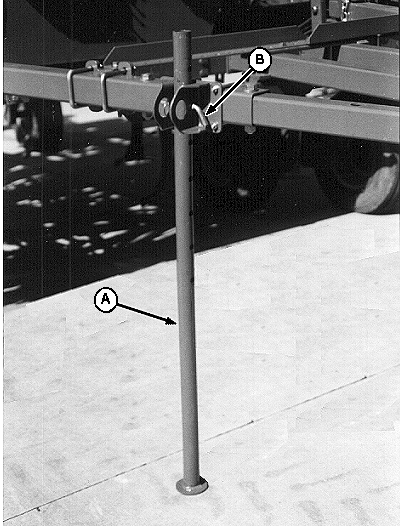

   A - Storage Stands

   B - Pins

   Remove pins (B) and move storage stands (A) from transport-field position to storage position. Place tube ends in contact with ground and retain with L-pins and quick-lock pins.

---




6.
   A54005-UN-05MAR04

   Except 1830, 1835


   A60101-UN-25SEP07

   Only 1830, 1835

   A - Chains

   B - Pins

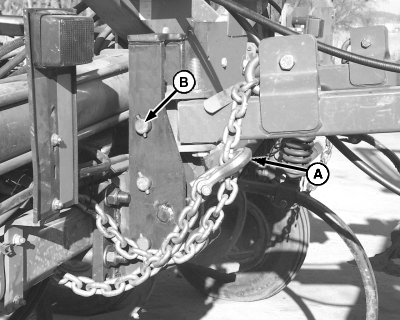

   At both hitch connections, open hook latches and remove safety chains (A) from rear bar of tool.

---




7. At both hitch connections, remove hitch tube-to-arm pins (B).

8. Drive tractor and seeding tool away from air cart.
