Adjust Tank Level in Monitor

1.
   A59671-UN-14JAN08

   Air Cart Button


   A72136-UN-23AUG11

   Primary Menu Button


   A72137-UN-23AUG11

   Totals Softkey


   A72149-UN-07SEP11

   Main Run Screen


   A72148-UN-07SEP11

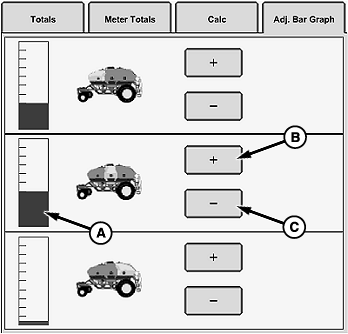

   Tank Level Adjustment Screen

   A - Tank Level Bar Graph

   B - Plus Button

   C - Minus Button

   Select primary Menu button >> Air Cart button >> Totals softkey >> Adj. Bar Graph tab.

---




2. Select plus (B) or minus (C) buttons to adjust tank level bar graph (A).

3. Repeat for other tanks as needed.

Screen Area Information

Air Cart - Air Cart
Totals - Totals
Adj. Bar Graph - Adjust Bar Graph
