Park Safely

Park machine on a level surface and block wheels.

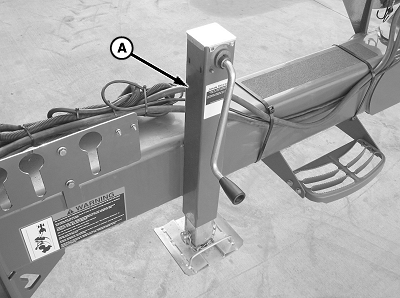

A60092-UN-23MAY07

Single Speed 1910 Cart Hitch Jack (Tow Between)

A - Hitch Jack

Remove weight from tractor draw-bar using hitch jack (A).

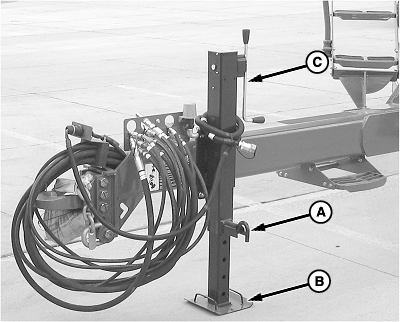

A65084-UN-13AUG09

Two Speed 1910 Cart Hitch Jack (Tow-Between)

A - Leg Pin

B - Foot Plate

C - Jack Handle

NOTE: High gear is engaged when the handle is pushed in. Low gear is engaged when the handle is pulled out.

Pull pin (A) and lower foot plate (B). Place jack handle (C) in desired gear and rotate to apply hitch weight on jack.
