Detach Machine From Tractor

CAUTION: To help prevent severe injury or death to you or someone else:

Keep all persons away from machine when raising and lowering wings.

Always locate machine on level ground when raising and lowering wings.

Never raise or lower wings when moving.

  1. Park machines on flat level ground and block wheels.

  2. With transmission in “Park”, completely raise machine and fold wings.

  3. IMPORTANT: Avoid machine damage. Do not store machine with height reduction valve in transport position (if equipped).

    A43344
    A43344-UN-19APR99

    Valve Shown Open

    A - Hydraulic Lock-Up Valve

    Close hydraulic lock-up valve (A) on seeding equipment.


  4. A65088
    A65088-UN-13AUG09

    Tow-Between Cart-Two Speed Jack

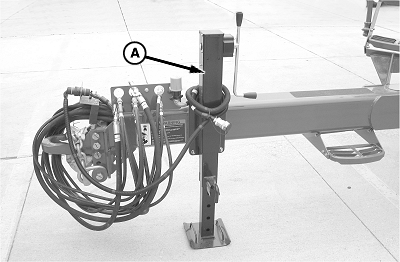

    A - Hitch Jack

    Lower hitch jack and remove weight from tractor drawbar.


  5. A53393
    A53393-UN-25NOV03

    A54064
    A54064-UN-17MAR04

    8000 Series Tractor Shown

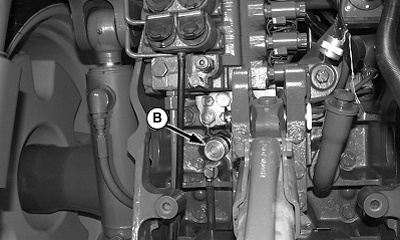

    A - Fan Motor Case Drain Hose

    B - Low-Pressure Drain Coupler

    Remove fan motor case drain hose (A) from low-pressure drain coupler (B). See tractor operator’s manual for information on connection points.


  6. N48108
    N48108-UN-17DEC01

    With Electro/Hyd SCV Controls

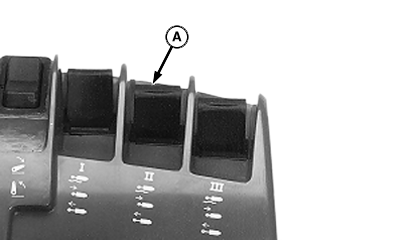

    A - SCV Lever

    (If wings are folded) Before disconnecting folding cylinder hydraulic hoses, relieve pressure by positioning SCV lever (A) in “Float” position.


  7. CAUTION: If you attempt to disconnect hydraulic hoses under pressure, serious personal injury can result . Refer to tractor Operators manual for SCV operation to relieve hydraulic line pressure before disconnecting hoses.

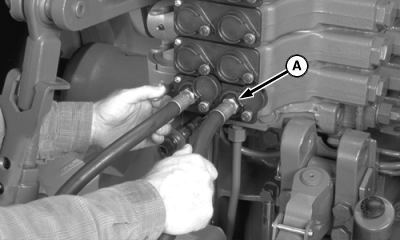

    Place SCV controls in “Float” position to relieve pressure before disconnecting hoses.

    RW55304
    RW55304-UN-18DEC01

    A71070
    A71070-UN-04APR11

    1910 TBT Commodity Cart

    N45567
    N45567-UN-14OCT93

    Seeding Tool

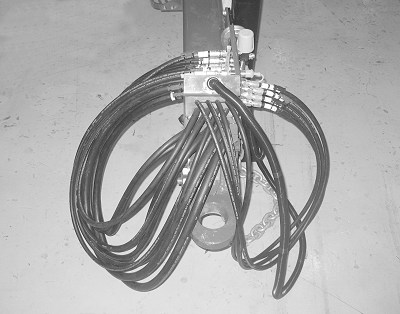

    A - Hydraulic Hoses

    Remove hydraulic hoses (A) and electrical connectors from tractor outlets and cover receptacles. Place hoses and cables in storage positions on hitch bracket.


  8. A60093
    A60093-UN-24MAY07

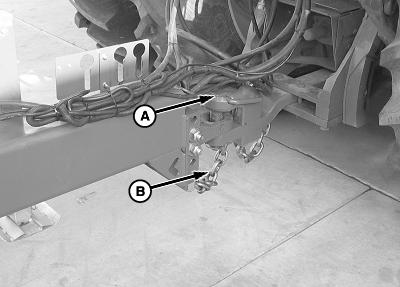

    A - Hitch Pin

    B - Safety Chain

    Remove safety chain (B).


  9. Remove hitch pin (A).

  10. Drive tractor away from machine.
