Attach Seeding Tool to Tow-Between Cart

CAUTION:

A75864
A75864-UN-08OCT12

A41634
A41634-UN-18DEC01

A - Pin

B - Safety Chain

Use a signal person to direct tractor and seed cart movement. Seed cart blocks tractor operator's view of seeding tool hitch point. Know hand signals and what each signal means before moving. Move slowly and follow signal person's directions to avoid a crushing accident which could cause severe injury or death to someone. Do not stand between air cart and implement while cart and tractor are in motion.

  1. Align hitch and attach with pin (A).

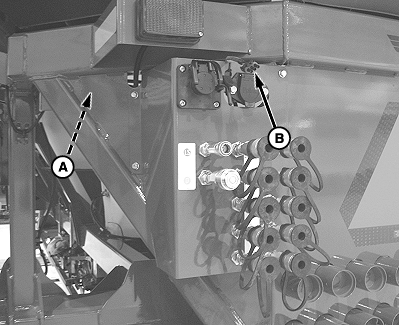

  2. A71068
    A71068-UN-04APR11

    A - Solenoid Lock Connector

    B - Remote Seeder Switch Connector

    Connect solenoid lock and remote seeder harnesses to connectors (A) and (B) (if equipped).


  3. CAUTION: Relieve hydraulic pressure before connection.

    NOTE: Extend and Retract symbols are on SCV cover.

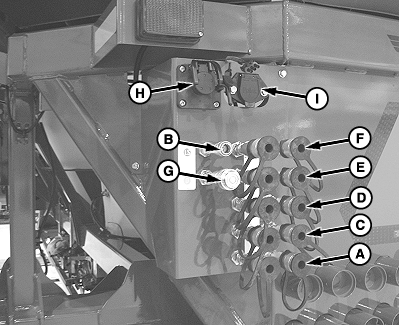

    A71069
    A71069-UN-04APR11

    A - Power Beyond (P-Pressure / R-Return)

    B - Load Sense, Power Beyond

    C - SCV I

    D - SCV II

    E - SCV IV

    F - SCV V

    G - Case Drain

    H - SeedStar™ Monitor Connector

    I - Warning Light Harness Connector

    Refer to connection table then connect hydraulic hoses.


  4. NOTE: Keep electrical connections clean from corrosion and debris for proper lighting operation.

    Connect harnesses to light connector (I) and SeedStar™ connector (H) (if equipped).

    Hose Identification

    SCV

    Pressure

    Return

    Hose Connections1

    Seeding Tool

    Frame Raise and Lower2

    I

    Extend

    Retract

    Seeding Tool

    Opener Lift and Lower

    Active Down Force System

    I or II

    Extend

    Retract

    Seeding Tool

    Opener Lift and Lower

    Non-Active Down Force System

    I or II

    Extend

    Retract

    Seeding Tool

    Wing Fold

    II or IV

    Extend

    Retract

  5. NOTE: Verify that seals are in place when attaching hose connector.

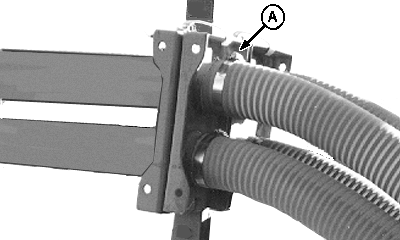

    A42323
    A42323-UN-20JAN98

    A - Hose Connectors

    Remove coupler cover plates and any debris from tubes before making connections. Attach seed cart hose connectors (A) to seeding tool with clips.


1 Always connect case drain hose first.
2 If equipped, TouchSet™ does not function if hose connections are incorrect.

LD45720,000052C-19-20140401
