Tow-Behind Field Hitch

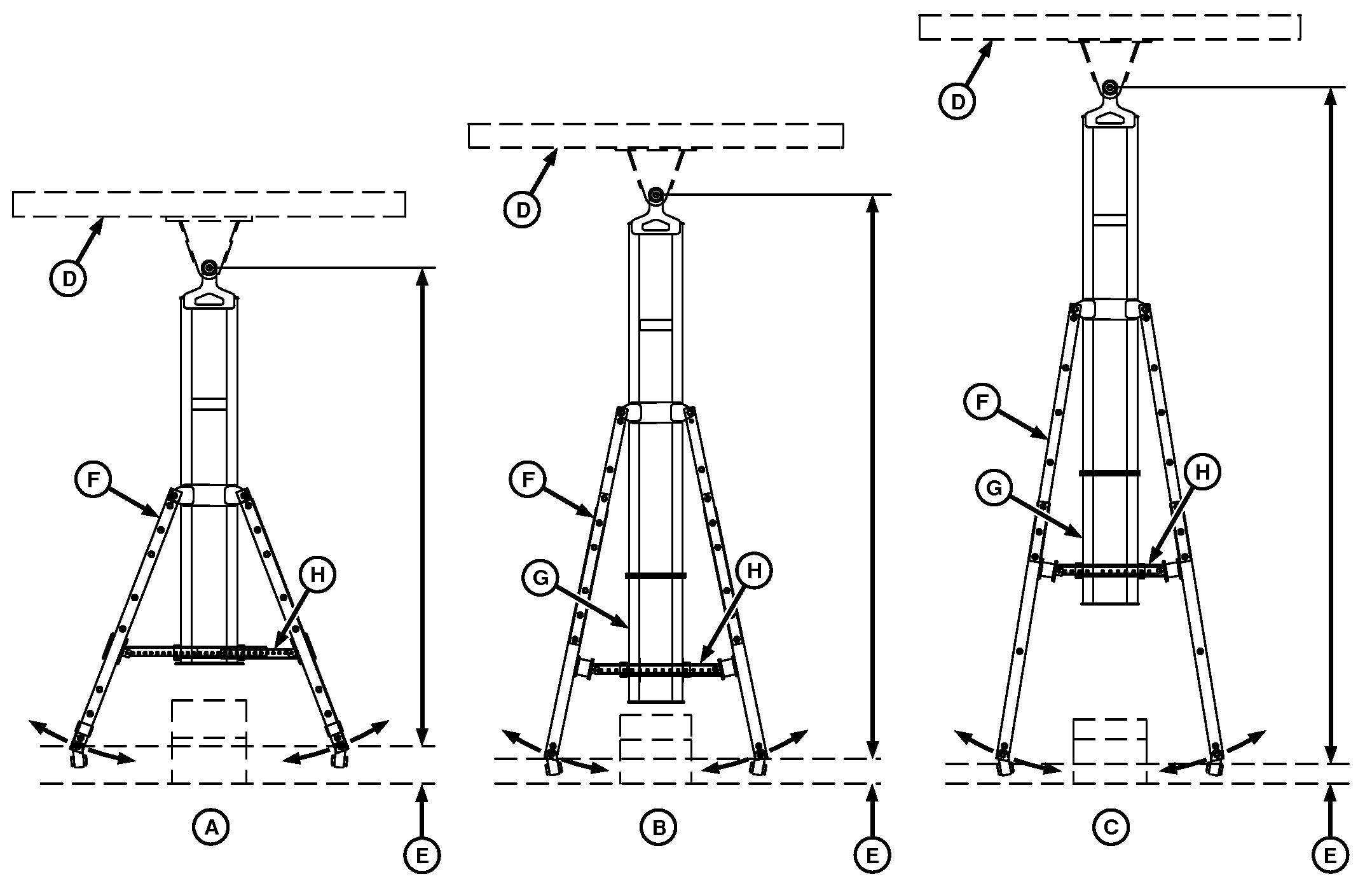

A57784-UN-18APR06

A - Short Length

B - Mid-Length

C - Long-Length

D - Air Cart

E - Minimum/Maximum Hitch Length

F - Hitch Tube

G - Hitch Frame Extension

H - Cross-Support

Hitch tube length is adjustable to provide clearance for rear bar attachments, such as press wheels and harrow.

Some applications require tubes be set to mid-length or long-length positions.

Hitch frame extension is required in mid length and long length positions.

550 TBH models come equipped with a heavy duty field hitch with heavy duty brackets.

Hitch Tube Settings—Tow-Behind
Tillage Model	Hitch Tube Setting	Hitch Frame Extension	Minimum Hitch Length mm (in.)	Maximum Hitch Length mm (in.)
1890/1895/2510S	Short Length	No	3402 (134)	3670 (145)
737/1870 735 w/ Attachments 1830/1835 with Dual Air Cart Casters	Mid-Length	Yes	4196 (165)	4383 (173)
1830/1835 with Single Air Cart Casters	Long Length	Yes	4945 (195)	5089 (200)

Cross-support adjustment is required for all installations, regardless of tube length settings.

Cross-support must be relocated to frame extension when mid-length or long-length settings are used.

Storage stands may need to be relocated closer to tube ends to support hitch when disconnected from tool.

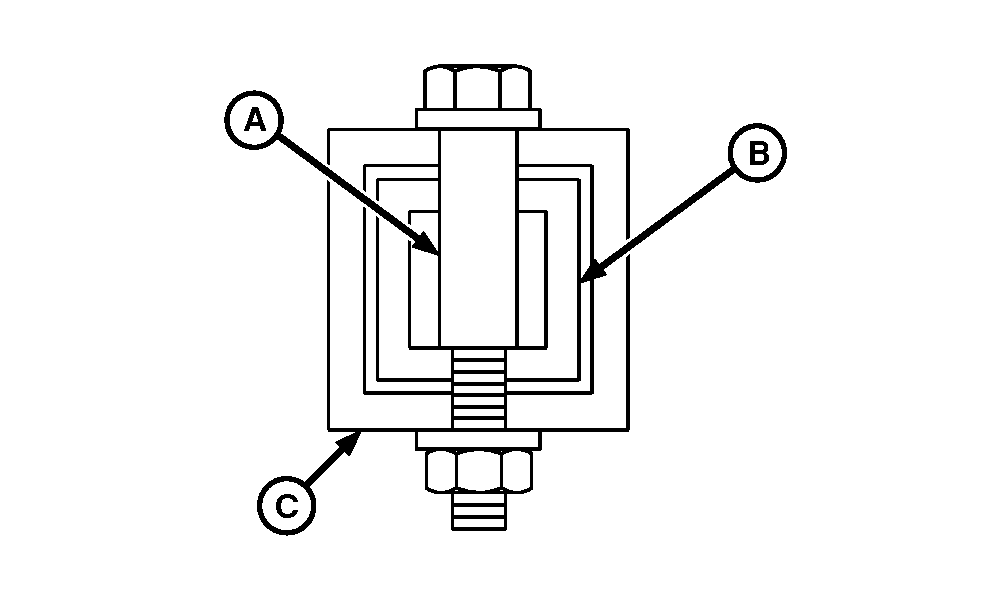

A57785-UN-18APR06

A - Retainer Spacer

B - Inner Tube

C - Outer tube
