Open or Close Product Runs

NOTE: The following procedure is an adjustment for a 1910 Air Cart. To match air cart to seeding tool perform the following procedure and adjust meter cartridge to seeding tool output.

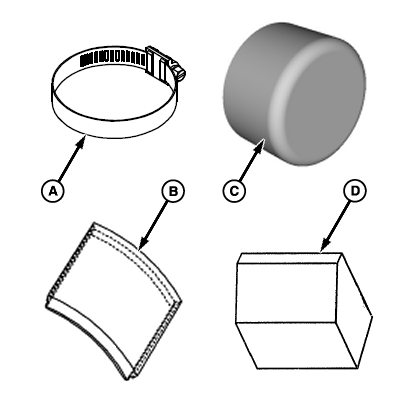

A64463-UN-15APR09

A - Hose Clamp

B - Meter Cover

C - Plenum Cap

D - Meter Seal

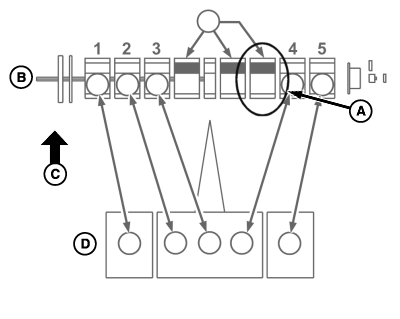

A64458-UN-15APR09

A - Run Blocked

B - Cart Meter Cartridge

C - Direction of Travel

D - Seeding Tool

1. IMPORTANT: Double-Shoot Manifold must have the same number of runs on the top and bottom. (For every top run there must be a bottom run directly underneath.)

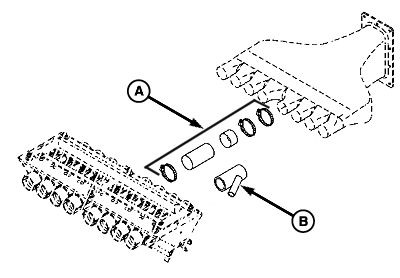

   A64727-UN-29MAY09

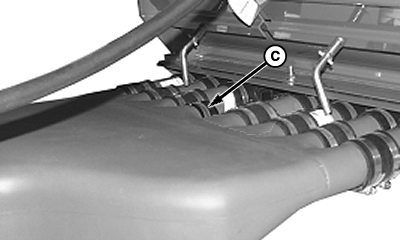

   A74281-UN-08FEB12

   A - Tube, Seal, and Clamp

   B - Barbed Fitting

   C - Cap and Clamp

   Remove existing parts (A) from desired row. If row has a barbed fitting (B), move barbed fitting and hose to another run where air flow is allowed to pass.

---




2. Install provided cap and previously removed clamp (C).

3. Repeat for other rows that need blocked off.

4. Install cap on primary between cart and implement.

5. Secure cap with hose clamp.

6. NOTE: Air carts with 3 m (9 ft. 10 in.) tire spacing. Rotate lock handle to clear tire.

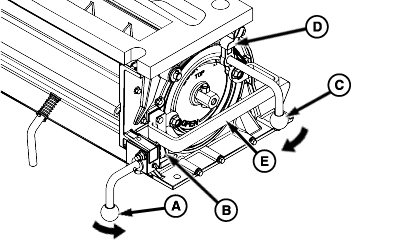

   A75223A-UN-08MAY12

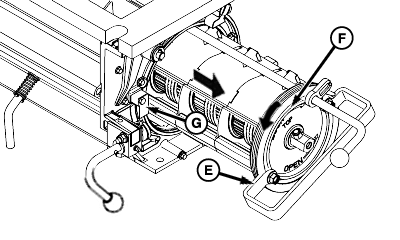

   A75224-UN-08MAY12

   A - Cam Lock Handle

   B - Cam

   C - Lock Handle

   D - Lock Plate

   E - Cartridge Handle

   F - Cartridge

   G - Lock Plate

   Disconnect gate detection sensor (if equipped).

---




7. Release lock handle (C) from lock plate (D) by turning handle clockwise.

8. Rotate cam lock handle (A) up. To disengage cam (B) from cartridge handle (E), pull handle toward front of machine.

9. Turn cartridge (F) counterclockwise to release handle (E) from lock plate (G).

10. Pull meter assembly from housing.

11. NOTE: Install or engage agitators on active runs. Deactivate agitators on inactive runs.


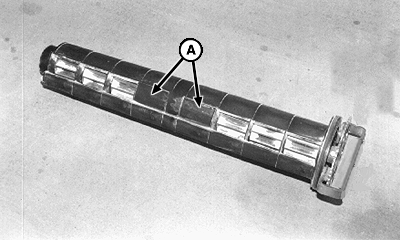

    A80101-UN-10FEB14

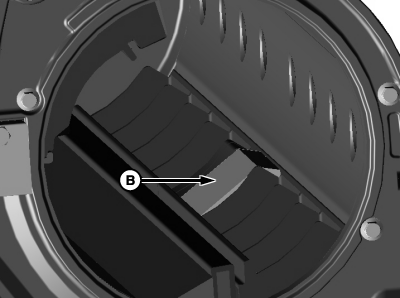

    A77936-UN-30MAY13

    A - Meter Covers

    B - Meter Seals

    Install (snap) meter covers (A) into enclosure openings.

---




12. Install meter seals (B) between meter cartridge and manifold plate.

13. Install meter in reverse order.
