Flush Variable Rate Motor Hydraulics

NOTE: Flushing hydraulics is required to remove debris from hydraulic system.

1. Start tractor and run at slow idle until hydraulic oil reaches operating temperature.

2.

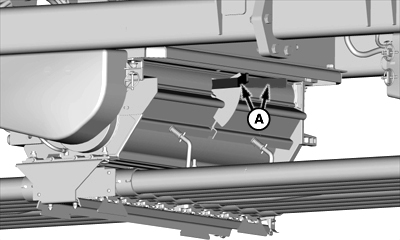

   A74367-UN-20FEB12

   A - Half-Width Disconnect Handles

   Meters That Are Being Flushed: Push both half-width disconnect handles (A) up to stop product flow.

---




3.

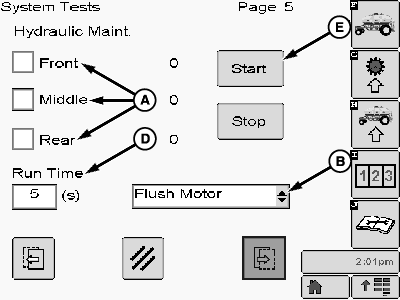

   A71196-UN-15APR11

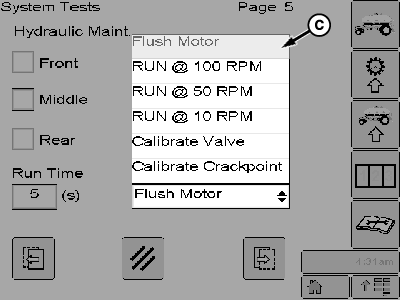

   A74521-UN-15FEB12

   A - Motor Selection

   B - Drop-down List

   C - Motor Speed Selection, Flush Motor

   D - Run Time, 5 seconds

   E - Start

   Select a meter check box (A) to run that motor. (Choose one or more of the meters to run during procedure.)

---




4. Select drop-down (B) and set to Flush Motor (C).

5. Select Run Time (D) and set from 5—20 seconds.

6. Select Start button (E).

7. Repeat for each motor as needed.
