Operate Half-Width Disconnects

IMPORTANT: Should disconnect handles feel jammed or locked up and not operate smoothly, they can usually be “worked” free using short up-and-down strokes at the start. Working the handles loosens caked-on residue that prevents smooth operation.

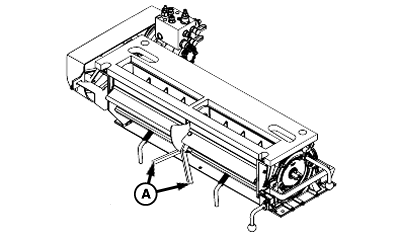

A75215-UN-07MAY12

Both Sides Open

A74367-UN-20FEB12

Both Sides Closed

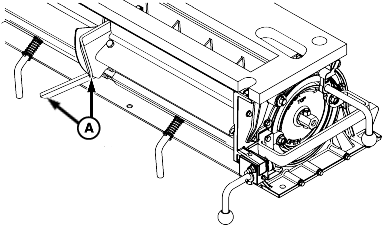

A75222-UN-07MAY12

Right Side Open—Left Side Closed

A - Half-Width Disconnect Handles

When both half-width disconnect handles (A) are down, passages are open, allowing product to reach active meter segments on both sides of centerline.

When one handle is up, product passages to this side of the meter are blocked, stopping product delivery to the corresponding side of the seeding tool.

Handles on all meters must both be up to stop all product delivery to this side.

Stopping product delivery to half of the tool is an effective way to seed point rows.

“Half-width” disconnect is an accurate description when there are an even number of primary runs delivering product. True “half-width” disconnect is not possible with an odd number of primary air runs.

When both handles are up, all product passages are blocked, allowing meter to be removed with product still in the tank. Lifting the handles not only blocks product passages to the meter but opens cleanout passages, allowing product to reach removable front panels for tank emptying.

Pull both handles down at both meters to return to full-width operations.
