Adjust Agitator Shaft Action

A41532B
A41532B-UN-30JUL98

A73677A
A73677A-UN-01DEC11

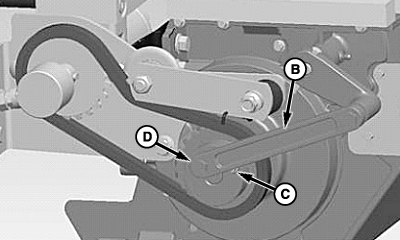

Low Setting Shown

A73676
A73676-UN-02DEC11

A42518
A42518-UN-23APR98

Meter Shown Removed

A - Agitator Shaft

B - Drive Arm

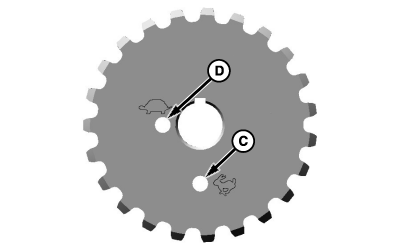

C - Outer Sprocket Hole, High Setting

D - Inner Sprocket Hole, Low Setting

E - Agitator

Rocking action of the agitator shaft (A) can be made more or less aggressive by changing drive arm position.

• LOW SETTING (Less Agitation)—Attach drive arm (B) to inner sprocket hole (D) for short position and less agitation. Low setting is used for most products except barley, oats, and forage crops.

• HIGH SETTING (More Agitation)—Attach drive arm to outer hole (C) for long position and more aggressive agitation. High setting is used for barley, oats, and forage crops.

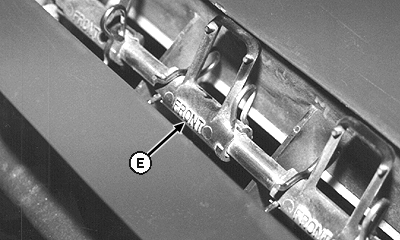

Product agitators (E) are installed only at the active runs to prevent bridging and to keep product free flowing. (See ACTIVE METER GUIDE in this section for illustration.)

LD45720,000054C-19-20111202
