Lubrication Intervals

Lubrication Intervals
Item	Start of Season	50 Hours	End of Season
Hitch Jack	●		●
Tank Lid Pivot	●		●
Meter Lock Levers	●		●
Cleanout Panel Levers	●		●
Conveyance Tube Swing Arm	●		●
Agitator and Meter Shafts		●
Caster Wheel Pivots-TBH		●
Front Beam Pivots-TBH		●

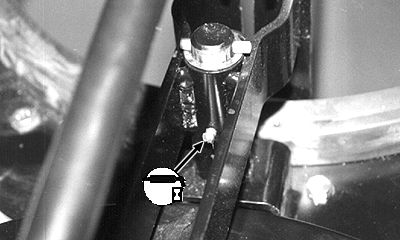

A40117B-UN-21APR98

Tank Lid Pivot—All

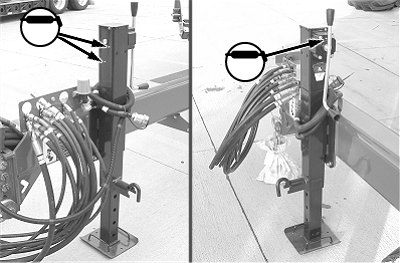

A65086-UN-13AUG09

Two Speed Hitch Jack

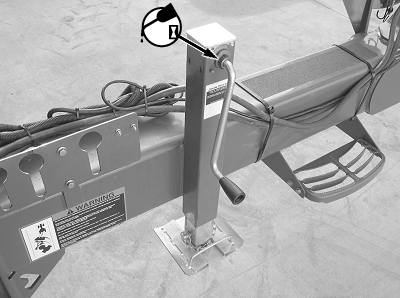

A60100-UN-25SEP07

Single Speed Hitch Jack

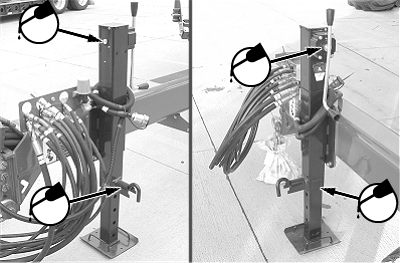

A65087-UN-13AUG09

Two Speed Hitch Jack

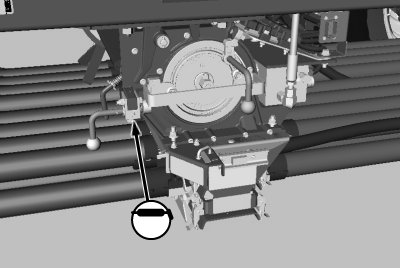

A77782-UN-01MAY13

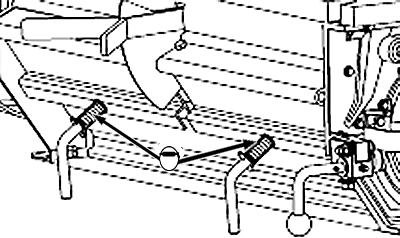

A75235-UN-08MAY12

Cleanout Panel Levers—All

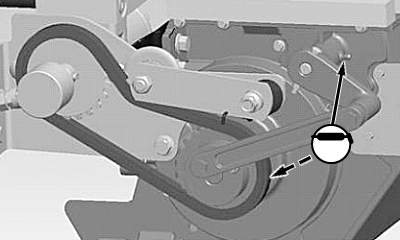

A73678A-UN-01DEC11

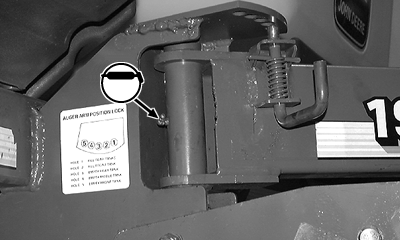

A40119B-UN-11AUG09

Conveyance Tube Swing Arm

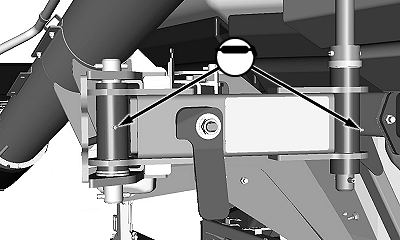

A66750-UN-17MAR10

Conveyance Tube Swing Arm

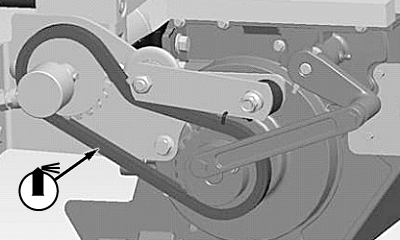

A73679A-UN-01DEC11

All Meters

IMPORTANT: Do not use chain lube or any other petroleum based lubricant on chains. Petroleum base acts as a “dirt magnet”, holding dust on chain links and limiting free movement.

Lubricate roller chains with John Deere Multipurpose Spray Lube, TY6350 (or equivalent) at weekly (50 hour) interval. Under adverse operating conditions, lubricate chains daily.

Effective roller chain maintenance varies, depending on environmental conditions and condition of the chain. The goal is to maintain free movement at every chain link joint.

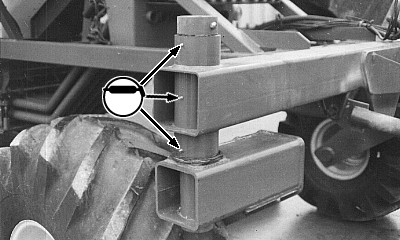

A41510A-UN-11AUG09

Caster Wheel Pivots

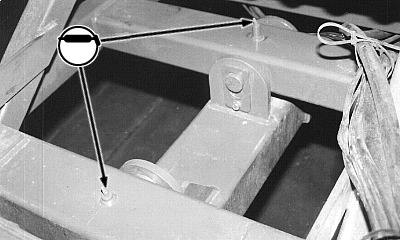

A41511A-UN-11AUG09

Front Beam Pivots

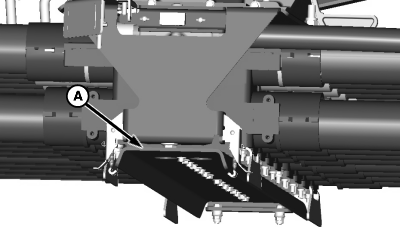

A76335-UN-08OCT12

A - Cover Plate
