Adjust Manual Auger or Conveyor Storage Position

Adjust Upper Cradle

1. IMPORTANT: Plate (B) must be properly inserted in slot (A) when in storage position or machine damage can occur.


   A71132-UN-05APR11

   A - Slot

   B - Plate

   C - Cap Screws (4 used)

   Adjust plate (B) until it extends through slot (A) as specified.

   Item	Measurement	Specification
   Tab Extended Through Rear of Slot	Distance	23 mm (15/16 in.)

---




2. Loosen hardware (C) securing plate to conveyance tube.

3. Slide plate rearward until tab extends though slot as specified. Tighten hardware.

Adjust Lock Position

1. IMPORTANT: Failure to lock the swing arm during transport can cause equipment damage.

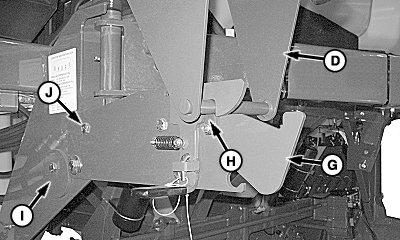

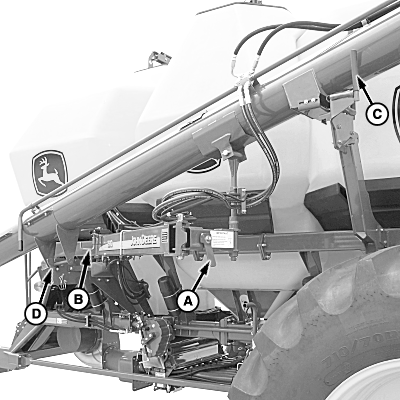

   A65892-UN-16NOV09


   A65900-UN-13NOV09

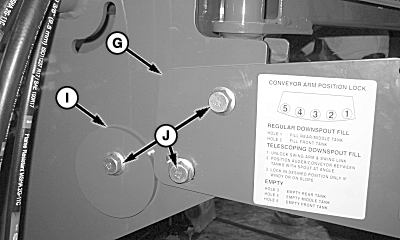

   A74225-UN-03FEB12

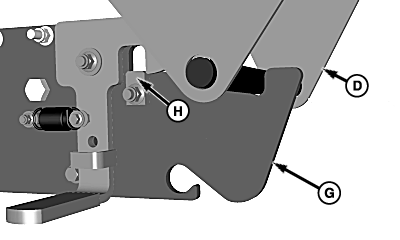

   A74224A-UN-03FEB12

   Adjustment Position


   A65901-UN-13NOV09

   Locked Position

   A - Locking Handle

   B - J-Handle

   C - Cradle

   D - Latch Bar

   E - Adjustment Hardware

   F - Tab

   G - Latch Plate

   H - Latch Pad

   I - Adjusting Plate

   J - Cap Screw and Nut (3 sets used)

   Adjust auger or conveyor assembly lock:

   1. Locking handle (A) must be rotated downward and locked before moving into storage position or removing from storage position.

   2. Pull down J-handle (B) and swing support arm toward machine.

   3. Position auger or conveyor into cradle (C).

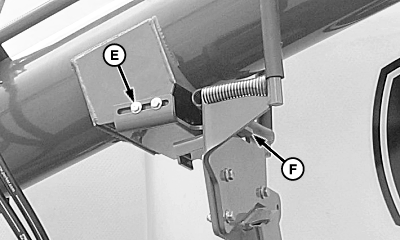

   4. IMPORTANT: Avoid machine damage. Insert tab (F) into slot when in storage position.

      Loosen hardware (E), slide plate towards cradle until tab (F) extends through slot approximately 25 mm (1 in.), and tighten hardware.

   5. Loosen adjusting plate (I) and latch plate hardware (J).

   6. Position latch bar (D) in latch plate (G) lower hook.

   7. Adjust latch plate (G) until latch bar contacts hook.

   8. Rotate adjusting plate (I) against latch plate and tighten all hardware.

   9. Slide latch bar into latch pad (H) and lock in position.

---




2.

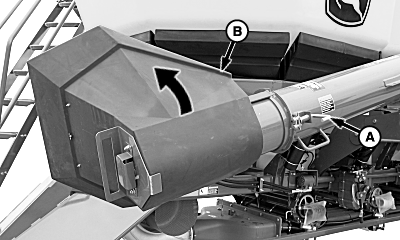

   A65899-UN-16NOV09

   A - J-Handle

   B - Hopper

   If equipped with auger, pull J-handle (A) and rotate hopper (B) towards machine.

---
