Adjust Tank Lid Down Pressure and Centering Tabs

IMPORTANT: If lid is not sealed tightly or tank is not pressurized, product will not meter properly.

Inspect tank lid seals (D) before adjustment. Verify seal is free of cuts, damage, and product has not built up on seal. Replace as necessary.

Centering Tabs

1.

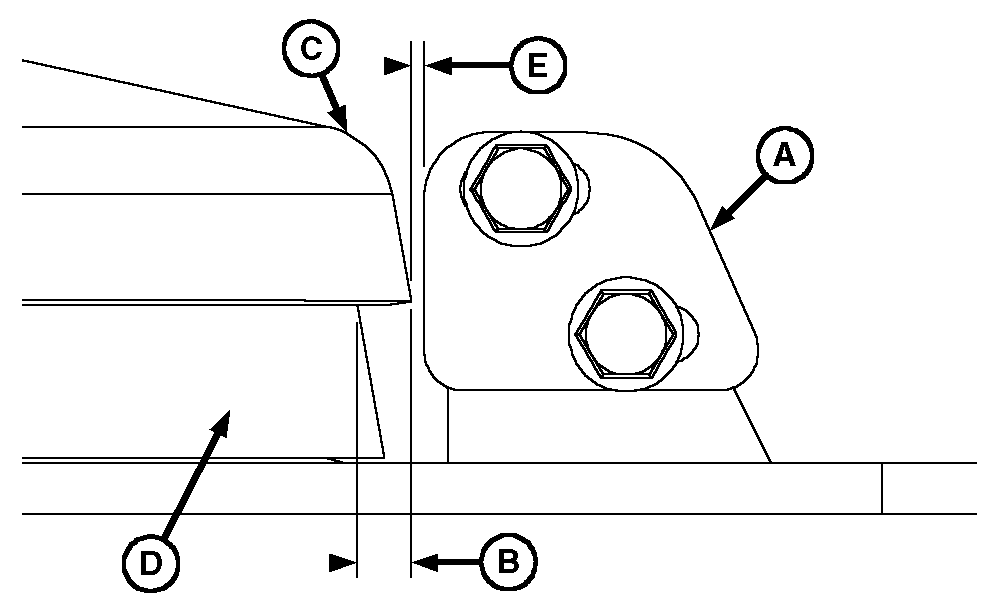

   A46455-UN-18AUG00

   A - Centering Tab

   B - Overlap Distance

   C - Tank Lid

   D - Seal

   E - Gap

   Center tank lid (C) so the overlap distance (B) is the same on each side of seal (D). Adjust centering tabs (A) so gap (E) meets specification.

   Item	Measurement	Specification
   Lid to Tab	Gap	1.5 mm (1/16 in.)

---




2. Tighten hardware in position.

Tank Lid Down Pressure

Tank lid down-pressure is adjustable to reduce air leaks. Use powder or fine dirt to check for air leakage around lid perimeter.

To adjust lid proceed as follows:

1.

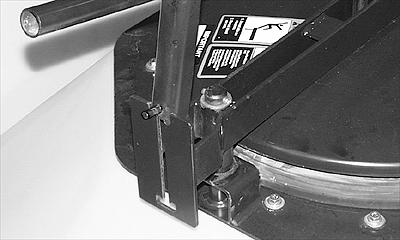

   A43546-UN-26AUG99

   Open lid and place in the upper locked position.

---




2.

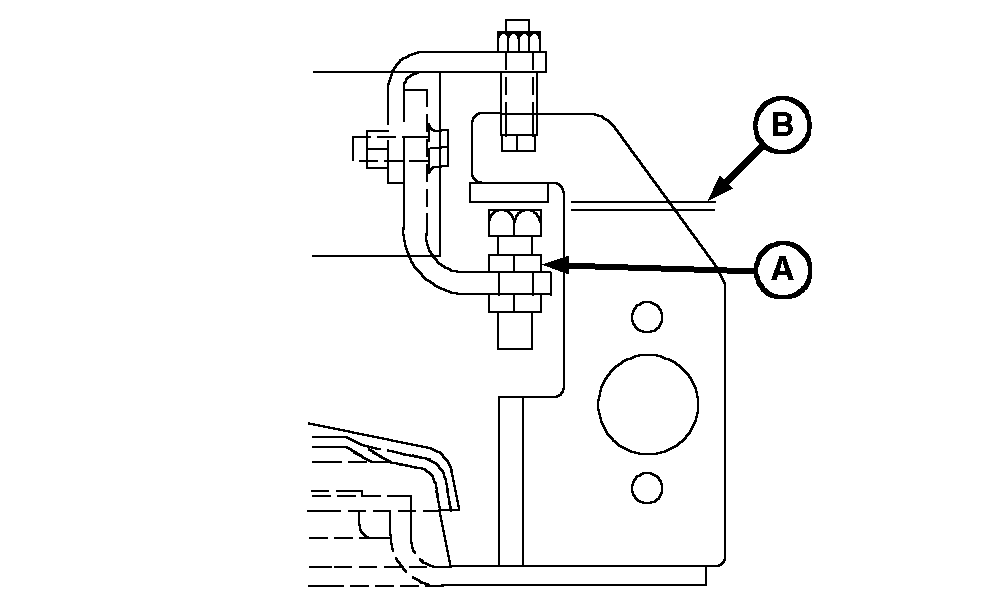

   A43545-UN-27SEP99

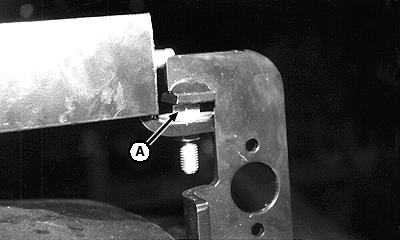

   A43473-UN-03JUN99

   A - Set Screw

   B - Gap

   Adjust latch set screw (A) to set pivot clearance gap (B) to specification.

   Item	Measurement	Specification
   Pivot	Clearance	3.2 mm (1/8 in.)

---




3.

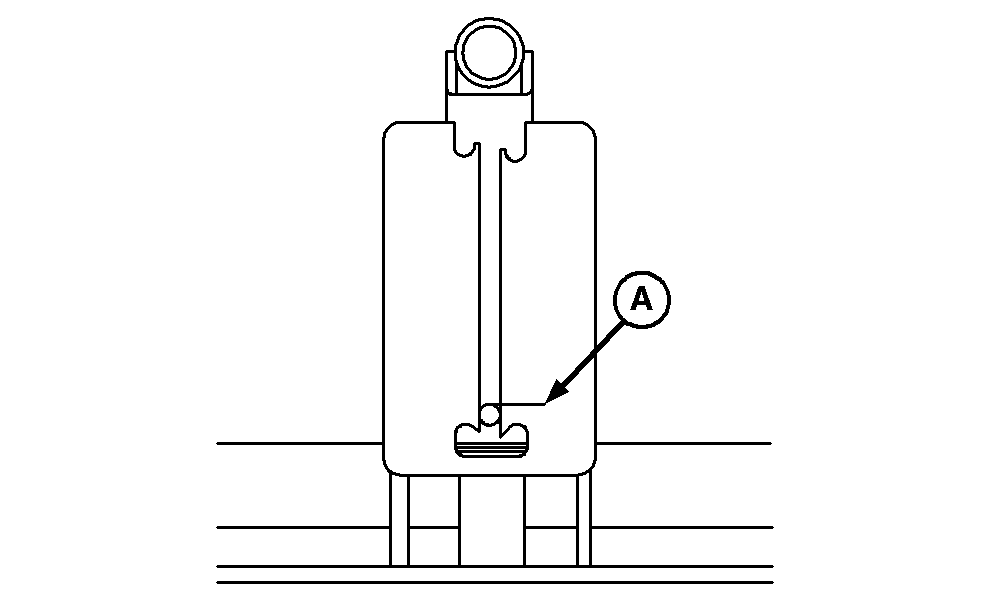

   A49160-UN-02MAY02

   A - Notch

   Identify notch (A).

---




4.

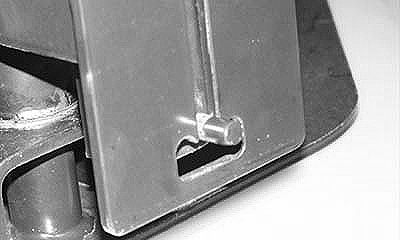

   A43547-UN-26AUG99

   Lower handle, allowing lid to rest on tank in unlocked position.

---




5. NOTE: Swing arm adjustment bolt does not have a gap with lid in this position. If adjustment is necessary, lightly press down on the lid handle while making adjustment.


   A49160-UN-02MAY02

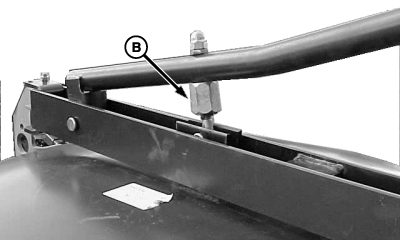

   A46308-UN-10JUL00

   A - Notch

   B - Coupling Nut

   Top of pin is at notch (A). Adjust as necessary by turning coupling nut (B).

---




6. Close lid and check for complete seal when lever is down and locked.
