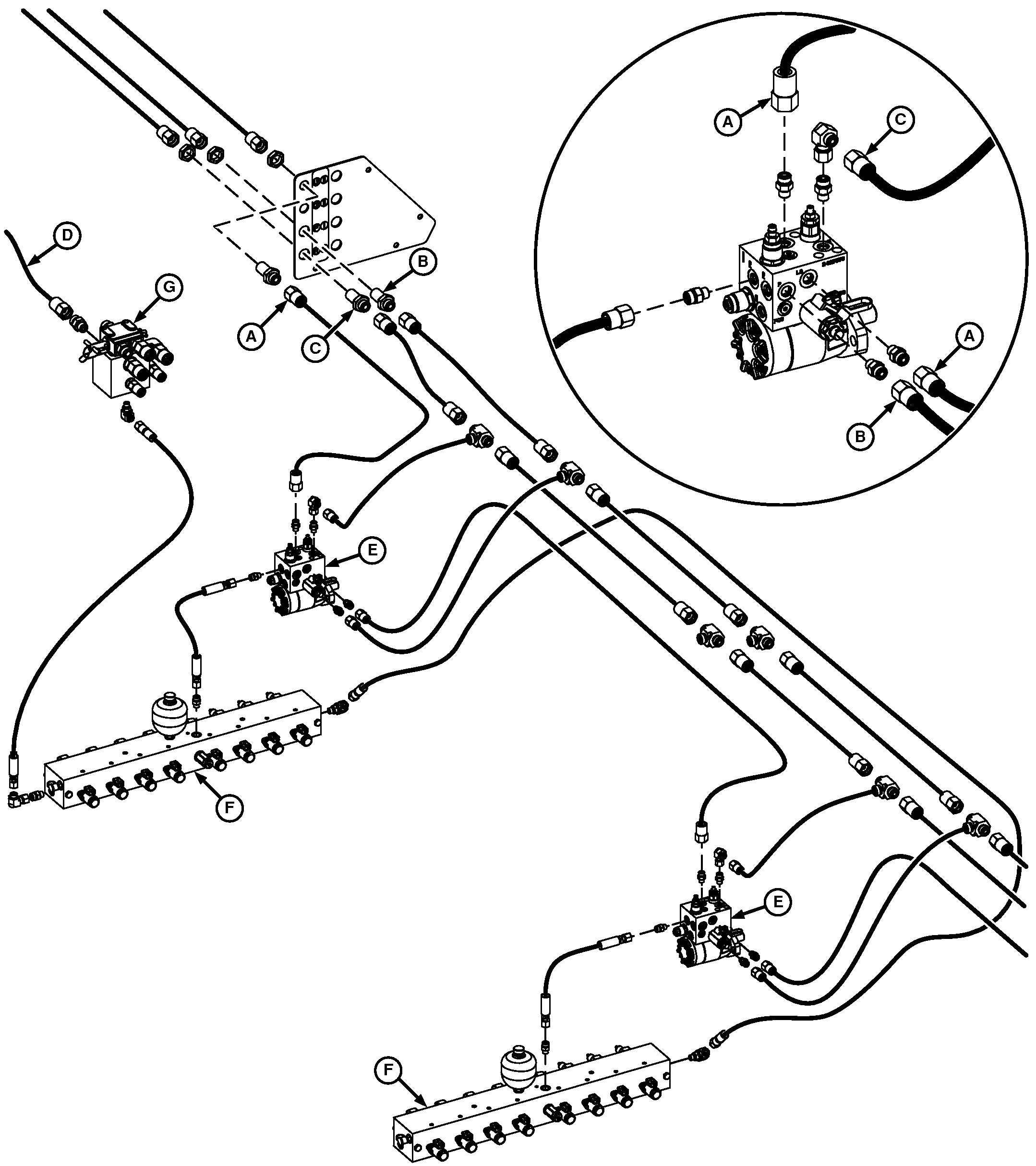

Hydraulic Hose Diagram—Meter Drive

A76869-UN-12DEC12

A - Power Beyond, Load Sense (Orange)

B - Power Beyond, Pressure (Red)

C - Power Beyond, Return (Black)

D - Case Drain

E - Meter Motor Valve

F - SectionCommand™ Valve Block

G - Auger Control Valve Block
