Install Meter Cartridge Assembly (with SectionCommand™)

1. NOTE: Air carts with 3 m (9 ft. 10 in.) tire spacing. Rotate lock handle to clear tire.

   Meter can be rotated slightly to engage two-point drive coupling on inner end.


   A75226-UN-08MAY12


   A75227-UN-08MAY12

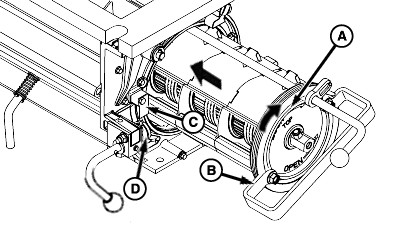

   A - Cartridge

   B - Cartridge Handle

   C - Lock Plate

   D - Cam

   E - Cam Lock Handle

   F - Lock Handle

   G - Lock Plate

   Slide meter cartridge (A) into housing.

---




2. Rotate cartridge clockwise to engage handle (B) into lock plate (C).

3. Position cam (D) under handle (B) by pushing in lock handle (E).

4. Rotate lock handle (E) down to lock cam in place under handle.

5. IMPORTANT: Verify that upper lock plate (G) is adjusted for proper fit. Incorrect plate adjustment causes latch and cartridge failures. See Adjust Cartridge Lock for correct procedure.

   Rotate lock handle (F) counter-clockwise to engage lock with lock plate (G).

6. Connect gate detection sensor.

7.
   A82729-UN-05JUN14

   A - Half-Width Disconnect Handles

   Pull both half-width disconnect handles (A) down to open product passages.

---
