Clean Meter Cartridge Assembly

1. NOTE: When running fertilizer, prevent build up during humid or damp conditions. Inspect and clean meter cartridge daily.

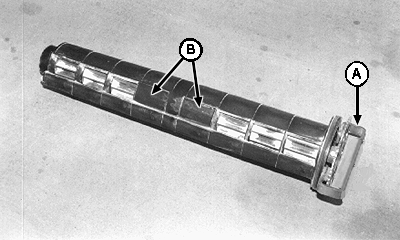

   A41533A-UN-30MAY02

   A - Sensor Ring

   B - Inlet Openings

   Remove meter cartridge from meter housing.

---




2. IMPORTANT: Do not drop meter cartridge or strike on meter enclosures to remove lodged product. Enclosures are made of plastic.

   Place meter cartridge in operating position with inlet openings (B) up.

3. Rotate sensor ring (A) and meter rollers to remove product from enclosures.

4. Turn cartridge over and rotate sensor ring to remove remaining product.

5. IMPORTANT: Do not allow product residue (chaff and dust) to accumulate on meter roller flutes. Residue build-up reduces meter roller capacity and adversely effects metering rate.

   Remove residue build-up from meter roller flutes. If a large amount of residue is observed, disassemble meter cartridge and thoroughly clean components. (See HOW TO CHANGE METER ROLLERS in Operate Machine—Meters section for disassembly and assembly procedures.)

6. Install meter cartridge in meter housing, turn handle into lock tab, and retain with cam lock lever.

7.

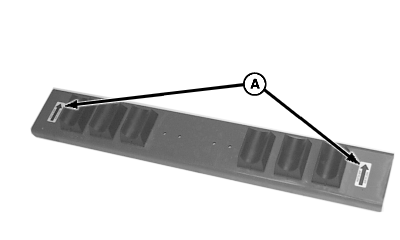

   A48931-UN-19APR02

   A - Cover Plate

   Install cover plate on bottom of manifold.

---




8. NOTE: Before returning to normal operation, ensure stationary double-shoot manifold slide is in proper position.

   Repeat entire cleanout procedure on remaining meter cartridges.

9. Replace any caps removed from air tubes.

10. Use compressed air to remove any remaining product from meter housing and ledges.
