Information Decals

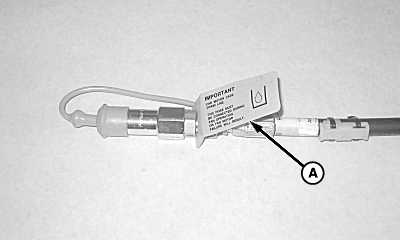

A71439
A71439-UN-11MAY11

A - Decal, Case Drain

IMPORTANT

Fan motor case drain line.

This hose must be connected during fan operating or fan motor failure will result.

(See LOW PRESSURE CASE DRAIN CONNECTION in Prepare Tractor section.)

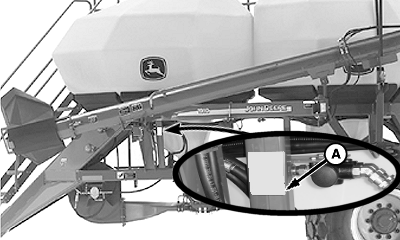

A64086A
A64086A-UN-02FEB09

TBT Shown

A - Decal, Hydraulic Flow

HYDRAULIC FLOW

Pull for auger / push for fan

(See SETTING FAN / AUGER SELECTOR VALVE in Air System Setup and Operation section.)

A76228
A76228-UN-28SEP12

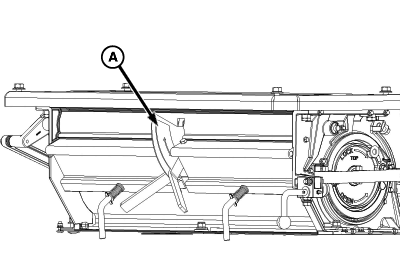

A - Decal, Handle Position

HANDLE POSITION

Meter cutoff / product to meter

(See OPERATING HALF-WIDTH DISCONNECT in Meter Setup and Operation section.)

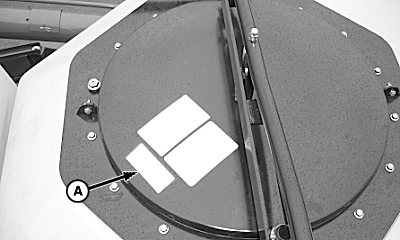

A71440
A71440-UN-11MAY11

A - Decal, Air Leaks

IMPORTANT

Air leaks affect metering accuracy

Clean lid and seal before closing lid

A71442
A71442-UN-11MAY11

A - Decal. Meter Cartridge Tuning

METER CARTRIDGE TUNING RING INSTALLATION TOOL

(See TUNE METER SEGMENT OUTPUT TO TOWER SIZE in Meter Setup and Operation section.)

A77915
A77915-UN-23MAY13

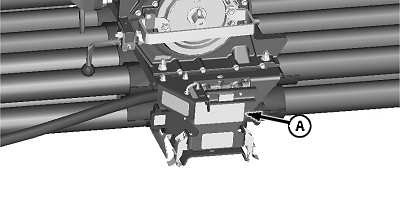

A - Decal, Push Pull Selector

(See SWITCHING STATIONARY DOUBLE-SHOOT FROM TOP-SHOOT TO BOTTOM-SHOOT in Air System Setup and Operation section.)

Pull

Top Shoot

Push

Bottom Shoot and Rate Check

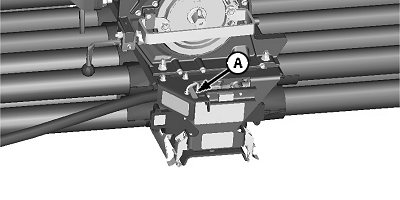

A77916
A77916-UN-23MAY13

A - Decal, Top or Bottom Shoot

TOP SHOOT / BOTTOM SHOOT

Latch retains meter in top or bottom shoot.

A77917
A77917-UN-23MAY13

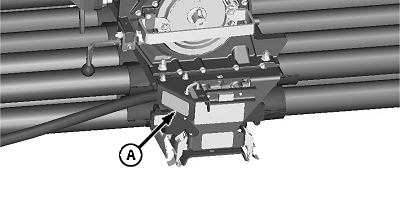

A - Decal, Cycle Slide

IMPORTANT

Cycle slide assembly daily (stroke 5 times minimum)

A77918
A77918-UN-23MAY13

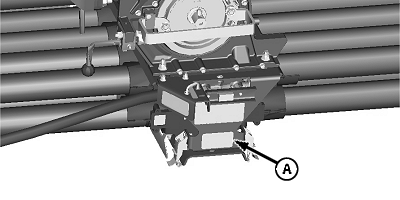

A - Decal, Clean Out

Regularly clean out air control valves and inspect manifold openings.

Clean air control valves, center plate, and pressurization hoses prior to storage.

(See METER CLEANOUT PROCEDURE in Service section.)

A71479
A71479-UN-12MAY11

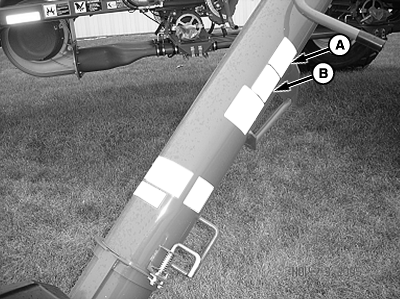

A - Decal, Auger Direction

B - Decal, Auger Operation

AUGER DIRECTION

Forward / reverse

AUGER OPERATION

To disengage from the upper slot, the auger must be pulled away from the cart before lowering to the ground.

A71478
A71478-UN-07SEP11

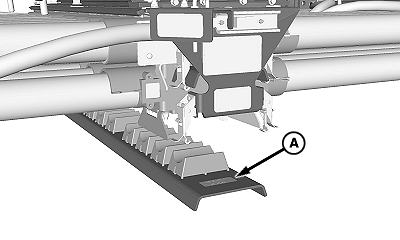

A - Decal, Air Flow

AIR FLOW

(See UNDERSTANDING AIR VELOCITY AND HOSE ROUTING in Air System Setup and Operation section.)

A71481
A71481-UN-12MAY11

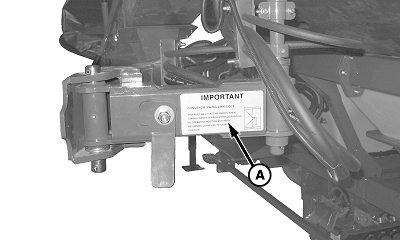

A - Decal, Conveyor Swing Link Lock

IMPORTANT

Conveyor swing link lock

This must be locked as shown when taking conveyor from storage position to operating position and when returning conveyor to storage position.

(See FILL TANK, EMPTY TANK, or LOCKING IN STORAGE POSITION in Conveyance System and Tank section.)

A64017
A64017-UN-28JAN09

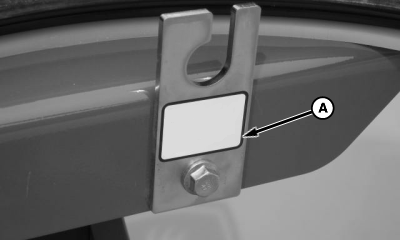

Inside Tank Lid

A - Decal, Hook

HOOK TELESCOPING SPOUT HANDLE HERE

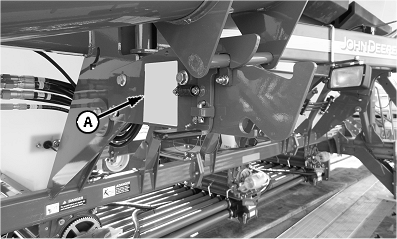

A77921
A77921-UN-23MAY13

A - Decal, Conveyor Arm Position Lock

CONVEYOR ARM POSITION LOCK

Fill

1. Unlock Swing Arm and Swing Link.

2. Position Auger/Conveyor between tanks with spout at angle.

3. Lock in desired position only if windy or on slope.

Empty

Hole 3

Empty Rear Tank

Hole 4

Empty Middle Tank

Hole 5

Empty Front Tank

Empty 550 Bushel only

Hole 1

Empty Rear Tank

Hole 3

Empty Middle Tank

Hole 5

Empty Front Tank

(See AUGER AND CONVEYOR ARM POSITION LOCK in Conveyance System and Tank section.)

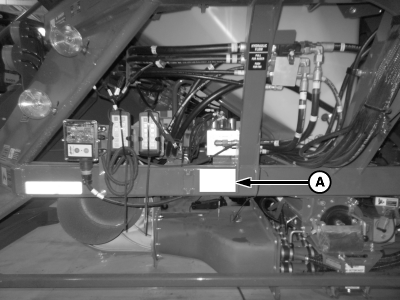

A83665
A83665-UN-11SEP14

A - Hydraulic Function and Control Scheme Decal

HYDRAULIC FUNCTION AND CONTROL SCHEME

Hydraulic Function and Control Scheme

Function

Coils Magnetized

Ports

Main Arm Cylinder Extend

A1 (Orange)

A1 (Double Blue)

Main Arm Cylinder Retract

A2 (Yellow)

A2 (Double Blue/White)

Swing-link Cylinder Extend

B1 (Green)

B1 (Blue)

Swing-link Cylinder Retract

B2 (Blue)

B2 (Blue/White)

Elevation Cylinder Retract

C1 (Red)

C1 (Green/White)

Elevation Cylinder Extend

C2 (Brown)

C2 (Green)

Conveyance Speed Pressure

M1 (White)

M1 (Brown)

Conveyance Speed Return



M2 (Brown/White)

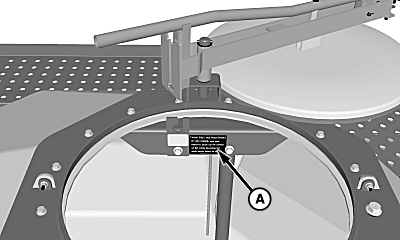

A71482
A71482-UN-12MAY11

A - Decal, Tank Exit

TANK EXIT INSTRUCTIONS

IF LID CLOSES: Use one hand to push up on center of lid while pivoting lid with other hand to open.

A75450
A75450-UN-12JUL12

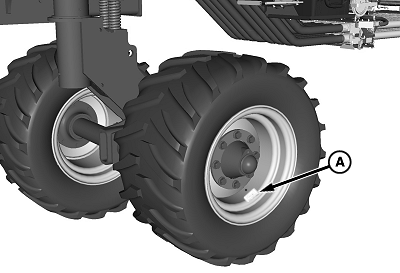

Wheel Bolt Torque Decal Location

A - Decal, M16 Wheel Bolt Torque

WHEEL BOLT TORQUE

(See Check Tow-Behind Wheel Bolts and Bearings in Transport section.)

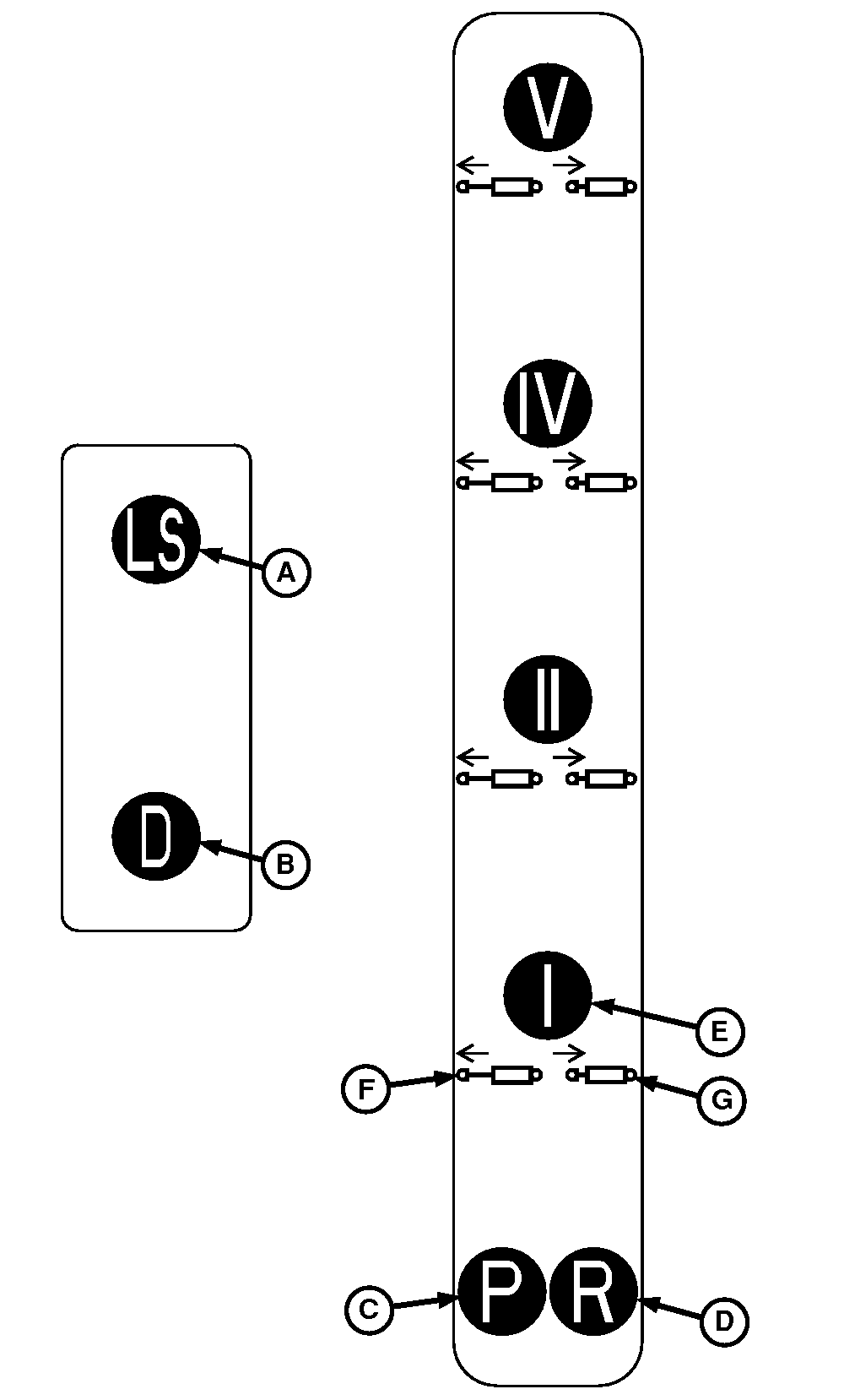

A71393
A71393-UN-11MAY11

A - Load Sense, Power Beyond

B - Case Drain

C - Pressure, Power Beyond

D - Return, Power Beyond

E - Identifies Tractor SCV Circuit, SCV 1

F - Identifies Retract Port

G - Identifies Extend Port

Flow Through Hoses

NOTE: Not used on TBH carts.

Hydraulic connection decals located on the rear of a TBT Cart or Seeding Tool. Symbols identify tractor SCV circuit and extend or retract ports.

A71412
A71412-UN-05MAY11

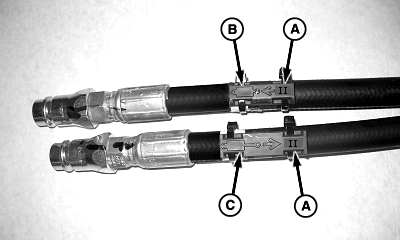

A - SCV Number

B - Flow Direction

C - Flow Direction

Identification tags are installed on ends of hydraulic hoses.

(A) Identifies tractor SCV circuit connection.

(B and C) Identifies direction of hydraulic flow.

MH69740,00003E4-19-20140911
