Warning Light Configuration (Style A)

From rear of unit, lights and reflectors are oriented as shown.

Starting from the outside of the light bracket moving towards the center of the unit, lights and reflectors are oriented in the following order:

1.
   A76247-UN-03OCT12

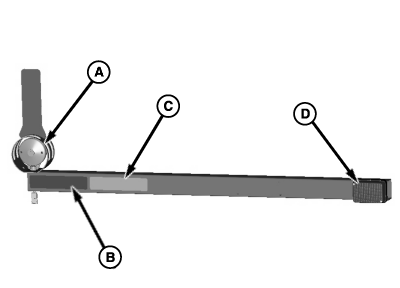

   North American Rear Orientation

   A - Amber Light

   B - Red Reflector

   C - Amber Reflector

   D - Red Light

   Amber light (A)

---

2. Red reflector (B)
3. Amber reflector (C)
4. Red light (D)

A76248-UN-03OCT12

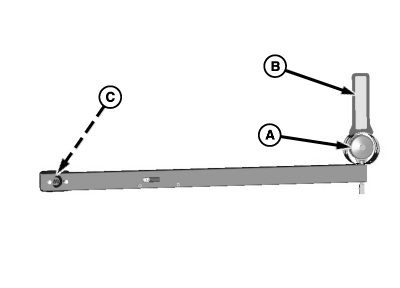

North American Front Orientation

A - Amber Light

B - Amber Reflector

C - Red Light

Starting from the outside of the light bracket moving towards the center of the unit, lights and reflectors are oriented in the following order:

1. Amber light (A)
2. Amber reflector (B)
3. Red light (C)

A76252-UN-03OCT12

North American Slow Moving Vehicle Sign
