Attach Seeding Tool or Air Cart to Tractor

CAUTION: Keep people clear when tractor is operational.

1.

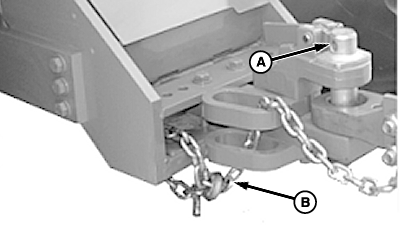

   A60112-UN-01JUN07

   9000 Series Tractor Chain Routing Shown

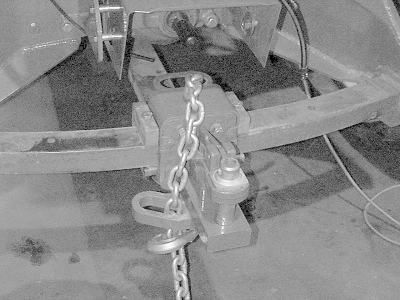

   A60652-UN-24AUG07

   9000T Series Tractor Chain Routing Shown

   A - Pin

   B - Safety Chain

   Attach machine to tractor with drawbar pin (A). Follow instructions in tractor operator’s manual to retain drawbar pin.

---




2. CAUTION: Verify proper safety chain rating.

   Provide only enough slack in chain to permit turns without binding.

   Attach safety chain (B) to tractor drawbar.

3. NOTE: Keep electrical connections clean from corrosion and debris for proper lighting operation.

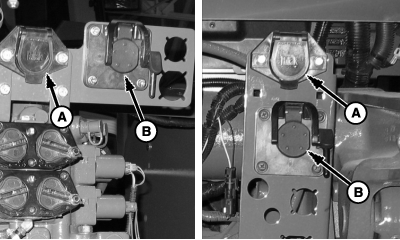

   A70798-UN-23FEB11

   North America Compliant Light Connector


   A70799-UN-23FEB11

   E.U. Compliant Light Connector

   A - Light Connector

   B - SeedStar™ Connector

   Connect harnesses to light connector (A) and SeedStar™ connector (B).

---




4. Connect any additional harnesses.

5.

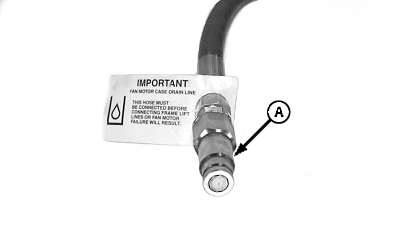

   A53393-UN-25NOV03

   Case Drain Hose

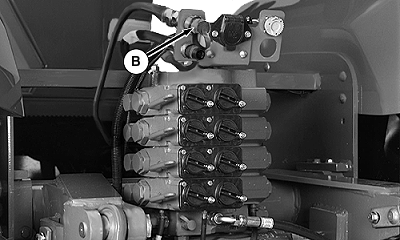

   A42741A-UN-17APR99

   Case Drain Coupler on 9000 Series Tractors Shown

   A - Drain Hose

   B - Drain Coupler

   Connect case drain hose (A) to low-pressure drain coupler (B). See tractor operator’s manual for connection points.

---




6. See tractor operator’s manual for power beyond pressure, return and load sense connections.

7. Verify that system is free of contamination after connecting hydraulics. Run Flush Variable Rate Motor Hydraulics procedure (See Service Section).
