Remove Meter Cartridge Assembly

1.
   A82729-UN-05JUN14

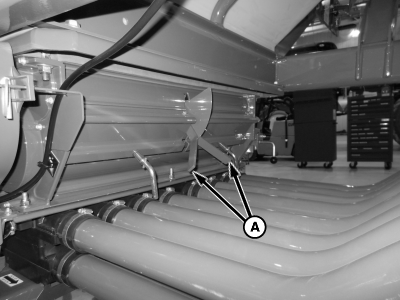

   A - Half-Width Disconnect Handles

   Disengage fan and push both half-width disconnect handles (A) up to block product passages to meter. Should disconnect handles feel jammed or locked-up and not operate smoothly, they can usually be “worked” free using short up-and-down strokes at the start. Working the handles loosens caked-on residue that may be preventing smooth operation.

---




2. NOTE: Air carts with 3 m (9 ft 10 in.) tire spacing. Rotate lock handle to clear tire.


   A76775-UN-13NOV12

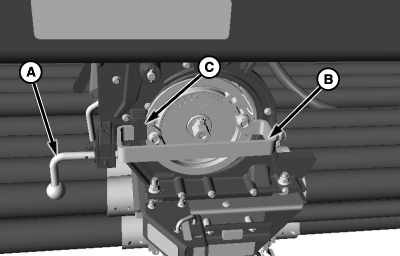

   A - Lock Handle

   B - Meter Handle

   C - Lock Tab

   Turn lock handle (A) up, and pull forward, to release lock cam.

---




3. Turn meter handle (B) counterclockwise to release from lock tab (C).

4. Pull meter assembly from housing.
