Change Rear Tires

A67588
A67588-UN-13MAR13

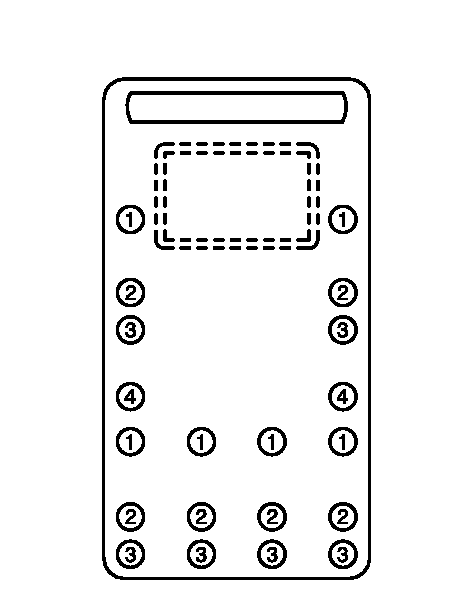

Refer to hole pattern diagram and chart to ensure that hub/axle housing-to-frame position is correct for new size tires.

Tire Sizes

Use Hole Pattern Number

30.5L-32 R2, 710/70R38, 20.8R38 Duals, 20.8R42, 30.5L32 R1, 18.4R42 Duals, 800/70R38, 650/85R38 Duals

1

28.1-R26R1, 30.5L-32 R3, 23.1-26 R2, 28L26 R2

2

23.1-26 R3, 28L-26 R3

3

IMPORTANT: Rear axle mounting bolts must be tightened to specification to avoid machine damage. Maintain hardware tightness to prevent machine damage.

ItemMeasurementSpecification
Rear Axle Mounting BoltsTorque675 N·m (500 lb.-ft.)
