Blockage System Overview

Blockage uses flow sensors installed in secondary air hoses to communicate product flow to a master blockage module, and displayed on the monitor.

Additional features of the blockage system are:

• Ability to monitor product flow to each tower (on a primary system) or each opener (on an all run system).
• Ability to warn operator of product interruption or blockage.

System Components:

Flow Sensor (192 maximum) - Monitors product flow.
Member Module - Monitors data from flow sensors on a tower.
Master Module - Monitors data from flow sensors (on a primary system) or member modules (on an all run system).
Cart Controller - Communicates with master module when to display blockage warnings.
Monitor Display - Accepts user input and displays product flow status.
Terminator - Plug at end of blockage harness that completes the communication circuit.

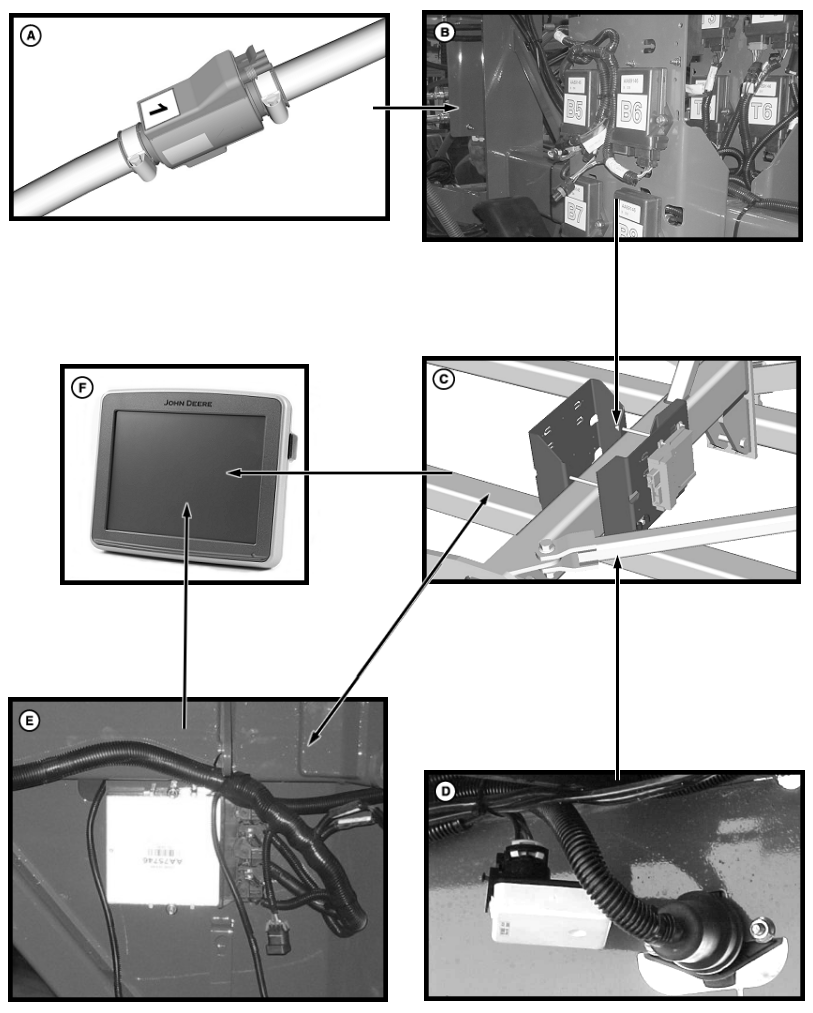

A77597-UN-05APR13

A - Flow Sensor

B - Member Module (All Run System only)

C - Master Module

D - Terminator Plug

E - Cart Controller

F - Monitor Display
