Prepare Wireless Hydraulically Controlled Conveyance System for Use

1. NOTE: Hopper (A) is held in adjusted position by spring-loaded lock pin (B).

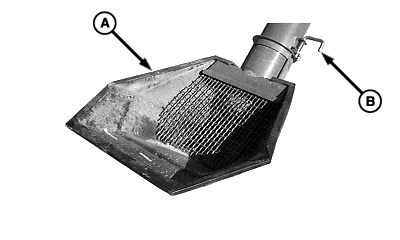

   A46373-UN-10JUL00

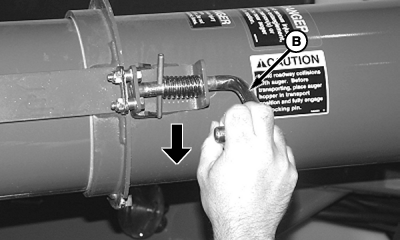

   A46939-UN-03DEC00

   A - Hopper

   B - Spring-Loaded Lock Pin

   Pull down on spring-loaded lock pin (B) handle until released from hole in sleeve. Rotate hopper (A) to filling/emptying position.

---




2. Align closest hole with pin and release pin to lock hopper.

3.

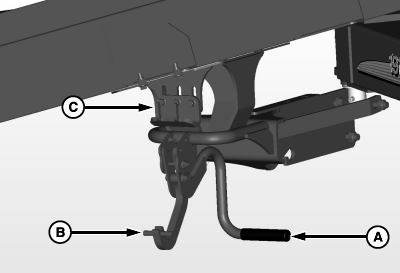

   A82219-UN-04APR14

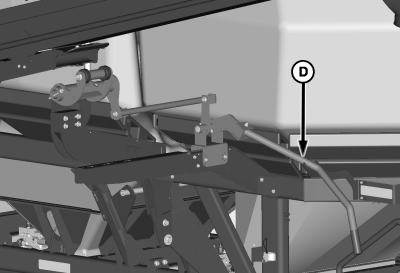

   A82220-UN-04APR14

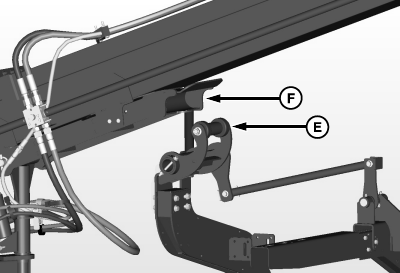

   A82221-UN-04APR14

   A - Front Lock Handle

   B - Front Lock

   C - Front Lock Latch

   D - Rear Lock Handle

   E - Rear Lock

   F - Rear Lock Latch

   Pull front lock handle (A) until front lock (B) releases from front lock latch (C).

---




4. Pull rear lock handle (D) until rear lock (E) releases from rear lock latch (F).
