Prepare Manually Controlled Conveyance System for Use

1.
   A64739-UN-05JUN09

   A - Keeper Pin

   B - Latch

   AUGER AND CONVEYOR: Release keeper pin (A) and pull out on lever to open hook and release storage latch (B).

---




2. AUGER AND CONVEYOR: Conveyance tube should rest on top of latch bracket.

3. NOTE: Hopper (A) is held in adjusted position by spring-loaded lock pin (B).


   A46373-UN-10JUL00


   A46939-UN-03DEC00

   A - Hopper

   B - Spring-Loaded Lock Pin

   AUGER ONLY: Pull down on spring-loaded lock pin (B) handle until released from hole in sleeve. Rotate hopper (A) to filling/emptying position.

---




4. AUGER ONLY: Align closest hole with pin and release pin to lock hopper.

5. CAUTION: Avoid crushing injuries. Keep hands and fingers away from hinge area when positioning conveyance.


   TS260-UN-23AUG88


   A82223-UN-07APR14

   Lock Tube (Conveyor Shown)


   A49964-UN-22AUG02

   Hopper Handle (Conveyor Shown)


   A49965-UN-22AUG02

   Hopper Lip (Conveyor Shown)

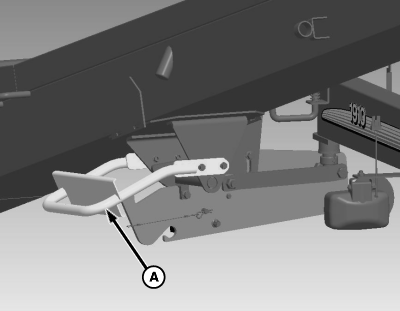

   A - Lock Tube

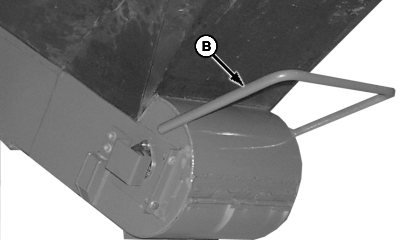

   B - Hopper Handle

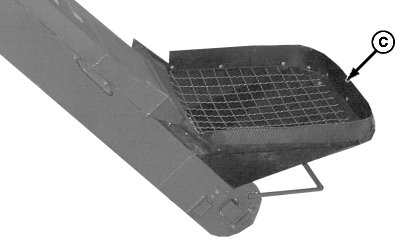

   C - Outside Hopper Lip

   AUGER AND CONVEYOR: Use any one of three handholds to position conveyance.

---




6. AUGER AND CONVEYOR: Using both hands for control, slide conveyance tube off bracket, gently lowering hopper to the ground.

7. AUGER AND CONVEYOR: Pull hopper toward front of cart, pivoting straight support arm away from frame, until outlet end of tube clears storage posts.

8. AUGER AND CONVEYOR: Pivot hopper around to the outside of cart.
