Light Enhancement Module
CAUTION:
A76019-UN-12SEP12

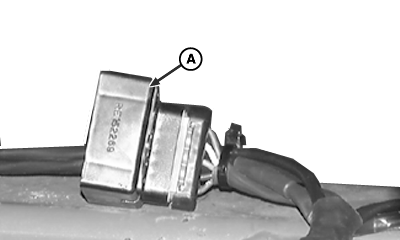

Light Enhancement Module
A82459-UN-29APR14

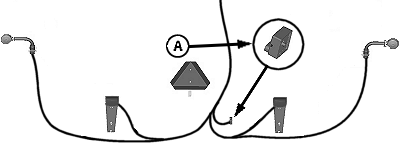

Light Configuration--Style A
A82460-UN-29APR14

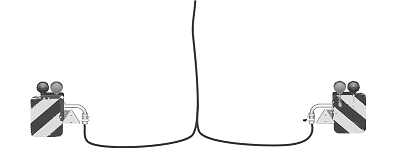

Light Configuration--Style B
A - Light Enhancement Module
When transporting the drill on a roadway, use flashing warning lights and turn signals day and night. Prevent collisions between other road users. Check local governmental regulations. Various safety devices are available from your John Deere™ dealer. Keep safety items in good condition. Replace missing or damaged items.IMPORTANT: The construction of this drill may not meet all local or national requirements for transport on a public roadway. In regions or countries that have national certification requirements for roadway transport, it may be impossible for this drill to be approved for such roadway transport. The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport.
NOTE: Keep all reflective material including slow moving vehicle (SMV) emblem (if equipped) clean and visible.
Keep lighting visible, clean, and in good working order.
Drills are equipped with the light configuration typically used in the destination country. The customer is responsible for checking local government regulations.
Light configuration—A includes a light enhancement module (A) to control certain light functions.
For operation in Australia, remove the light enhancement module. The specific functions of the enhancement module are not used in Australia.
|
