Hydraulic Connections Recommendations

A82588-UN-23MAY14

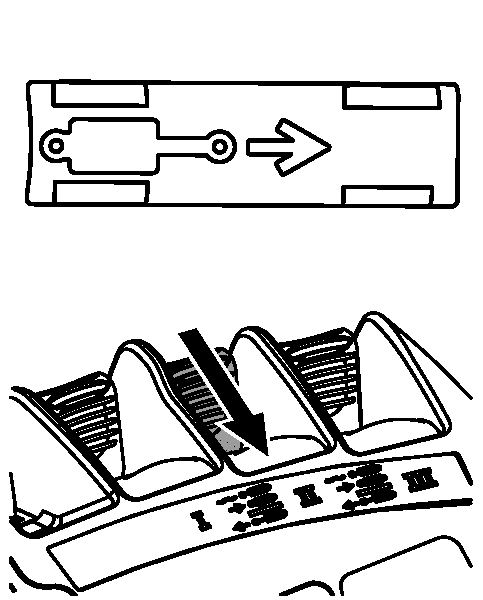

A82662-UN-27MAY14

Extend

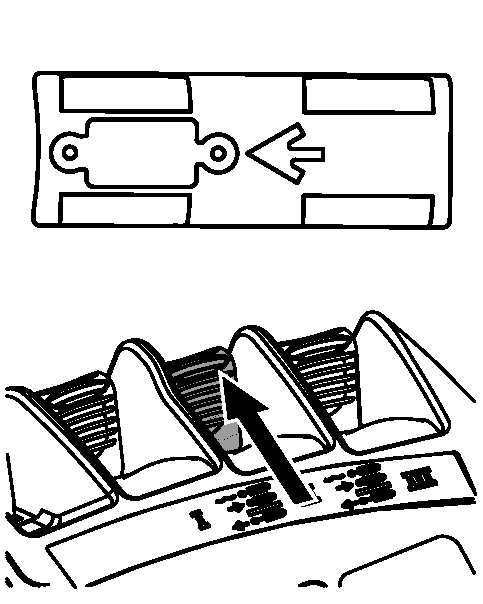

A82661-UN-27MAY14

Retract

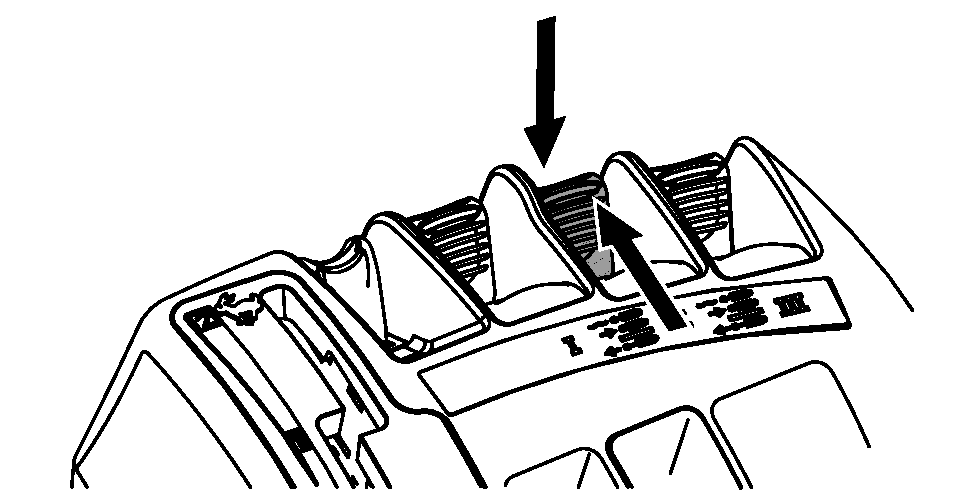

A82587-UN-15MAY14

Float

CAUTION: Relieve hydraulic pressure before connection.

NOTE: When connecting hydraulic hoses, ensure that hose tag matches tractor SCV symbol.

Extend and Retract symbols are on SCV cover. Refer to tractor operator’s manual for description of tractor controls.

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Improper hose connection can damage motor seals. Connect the case drain hose before any other hose. Improper use of tractor SCV’s can damage motor seals. Move tractor SCV lever to float (not neutral) position to shut off cart fan.

Hydraulic Connection Identification
SCV Port	SCV Circuit	SCV Color	SCV Symbol	Implement Function	SCV Flow1	SCV Time1
	Case Drain	Yellow	“D”	Non-Pressurized Hydraulic Return—All Functions	N/A	N/A
A	I	Green	Extend	Seeding Tool Frame Raise2	Maximum	10 seconds
B			Retract	Seeding Tool Frame Lower
A	I	Green	Extend	Seeding Tool Opener Lift (Active Down Force System)	Maximum	Continuous “C”
B			Retract	Seeding Tool Opener Lower (Active Down Force System)
A	I	Green	Extend	Seeding Tool Opener Lift (Non-Active Down Force System)	Maximum	2 seconds Activate periodically during use.
B			Retract	Seeding Tool Opener Lower (Non-Active Down Force System)
C	II	Blue	Extend	Seeding Tool Wing Fold	Maximum	90 seconds
D			Retract	Seeding Tool Wing Unfold
E	III	Brown	Extend	Cart Fan/Auger Hydraulic Return3	Variable	Continuous “C”
F			Retract	Cart Fan/Auger Engage
			Float	Cart Fan/ Auger Disengage
Power Beyond	Pressure	Red	“P”	Cart Hydraulic Drives and Section Command Connections not shown, refer to Tractor Operator’s Manual for specific locations.	N/A	N/A
	Return	Black	“R”
	Load Sense	Orange	“LS”
