Gate Detection Warning System

NOTE: When gate detection warnings occur refer to SERVICE section (INSPECT AND SERVICE SECTIONCOMMAND™ SYSTEM) to diagnose.

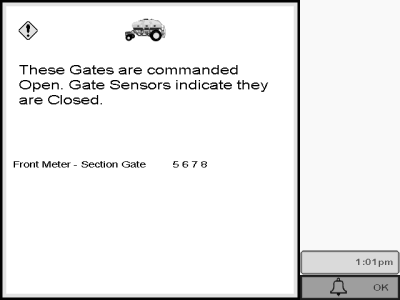

A82843
A82843-UN-19JUN14

This screen indicates that the gates are closed when commanded open.

These gates are commanded open. Gate sensors indicate they are closed.

Front Meter - Section Gate 5 6 7 8

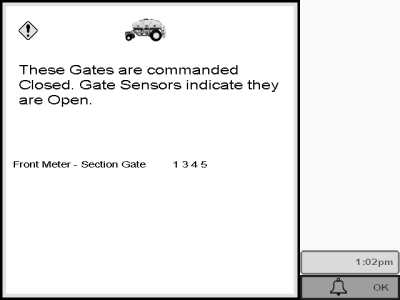

A82844
A82844-UN-19JUN14

This screen indicates that the gates are open when commanded closed.

These gates are commanded closed. Gate sensors indicate they are open.

Front Meter - Section Gate 1 3 4 5

MH69740,0000630-19-20140619
