Adjust Hydraulically Assisted Auger or Conveyor Storage Position

1.
   A82479-UN-02MAY14


   A82480-UN-02MAY14


   A82481-UN-02MAY14


   A82482-UN-02MAY14

   A - Front Conveyance Support

   B - Front Latch Assembly

   C - Conveyance Arm

   D - Rear Cradle Bumper

   E - Hardware

   F - Front Lock Latch

   G - Front Lock Handle

   H - Hardware

   I - Rear Lock Cradle

   J - Rear Lock Handle

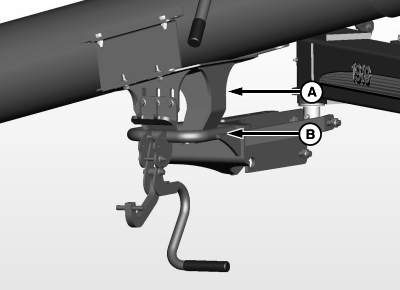

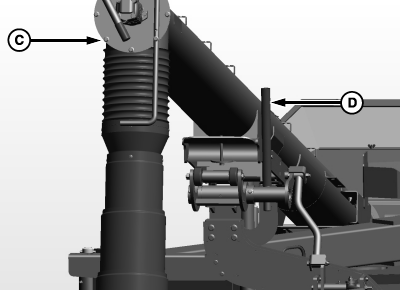

   Push main arm and swing arm toward air cart and place front conveyance support (A) into latch assembly (B). Swing conveyance arm (C) toward air cart until rear cradle bumper (D) is contacted.

---




2. IMPORTANT: To avoid machine damage, ensure that tension is spread evenly between front and rear latches.

   NOTE: If cradle (I) does not align with conveyance arm, push swing link towards the rear latch prior to adjusting.

   NOTE: Hardware (H) will be adjusted from the factory and will only need adjusted if cradle (I) is not supporting conveyance arm properly.

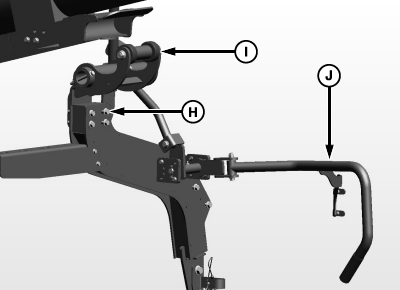

   Loosen hardware (H) and adjust cradle (I) until tension is felt when locking the rear lock handle (J). Tighten hardware (H).

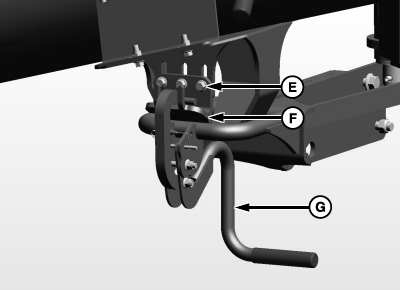

3. Loosen hardware (E) and adjust latch up (F) until tension is felt when locking the front lock handle (G). Tighten hardware (E).

4.
   A82485-UN-02MAY14

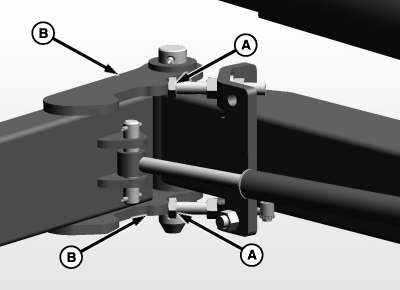

   With conveyance in locked position, adjust swing-arm adjustment bolt (A) until it contact swing-arm plate (B).

---




5.
   A65899-UN-16NOV09

   A - J-Handle

   B - Hopper

   If equipped with auger, pull J-handle (A) and rotate hopper (B) towards machine.

---
