1910 Cart Tow Behind Models

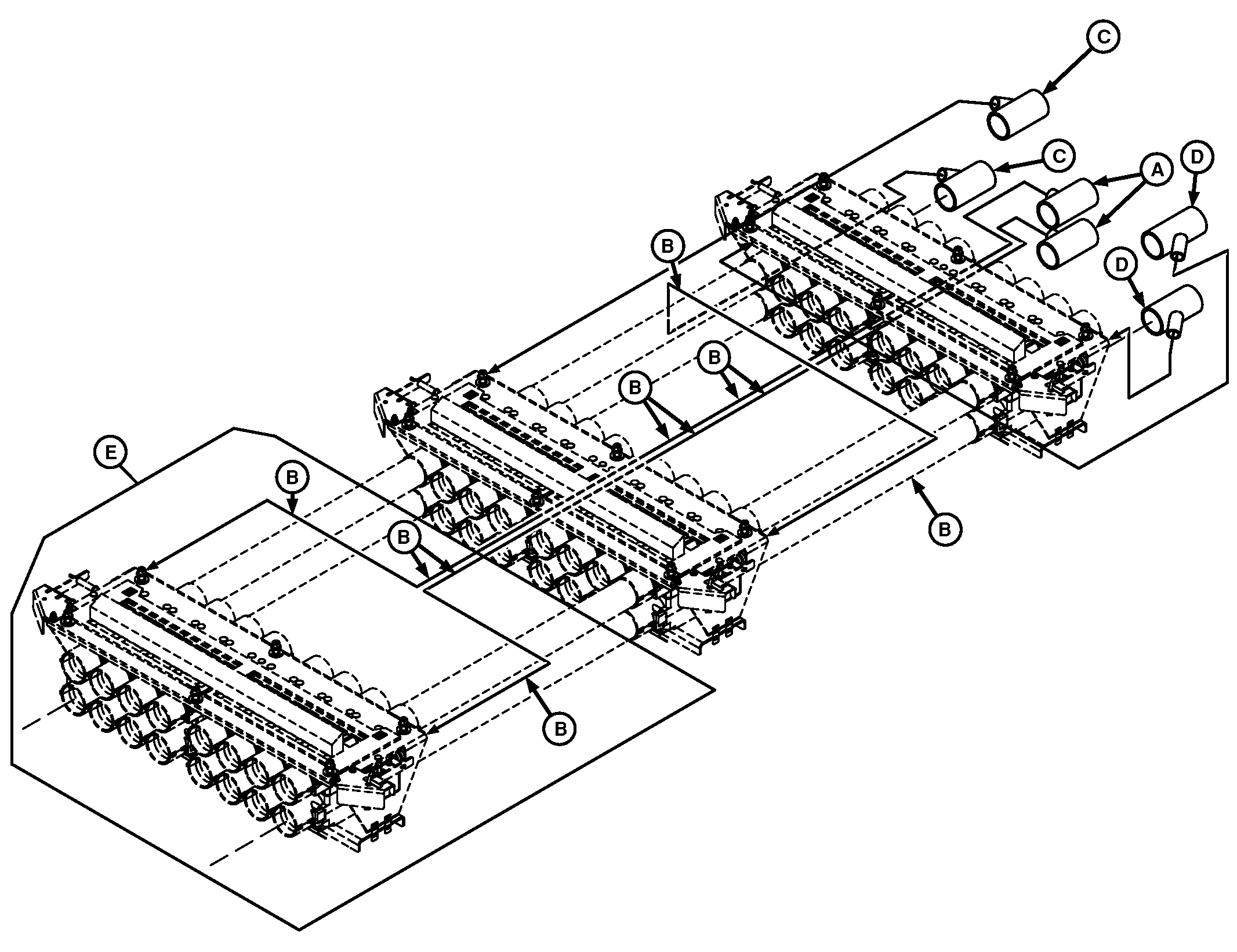

Tank Pressurization Hose Routing

A49388-UN-21JUN02

A - 90° End Tube—Middle Tank Models Only

B - Tie Strap Location

C - 90° End Tube—Two Tank Models, 30° End Tube—Middle Tank Models

D - 30° End Tube

E - Middle Tank Models Only

IMPORTANT: Attach pressurization hoses to primary tubes. Lateral routing of pressurization hose to be directly behind 1st and 2nd manifolds.

IMPORTANT: End tube (C) will have a 90° elbow on two tank carts and a 30° elbow on three tank carts.
